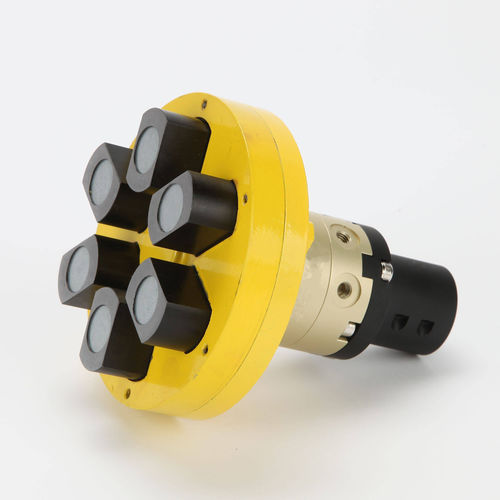

Pinza di presa magnetica AY Series
pneumaticaaltraper movimentazione

pinza di presa magnetica
pinza di presa magnetica
pinza di presa magnetica
pinza di presa magnetica
pinza di presa magnetica
Aggiungi ai preferiti
Confronta con altri prodotti


Caratteristiche

Azionamento
pneumatica
Numero di griffe
altra
Tipo di prodotti
per movimentazione, per lamiera
Caratteristiche e opzioni
compatta, magnetica
Forza di prensione

545 N

Descrizione

A highly technical tool series that allows maximum saturation (performance) on thin material array units ("AY") offers the increased power in a compact, single actuator packages. These units are suited to sheet handling on the fly or in shear. This is a revolutionary automation tool than, for the first time, truly challenges suction systems while delivering fast payback on the initial investment. Units can be specified for deep field (JSC) or shallow field (ASC) operation. Application - For thin workpieces: AY-ASC with a flat magnetic field - For thick workpieces: AY-ISC with a deep magnetic field - Suitable for automation, lifting operations, robotics technology, welding and clamping technology Features - Very thin sheets up to 0,5 mm can be separated from the stack - Absolutely safe lifting – namely with 4-times safety (the pull-off strength is 4 times of the recommended lifting force) - Very light and very heavy workpieces can be grabbed - Compact and stable - Very low residual magnetism
