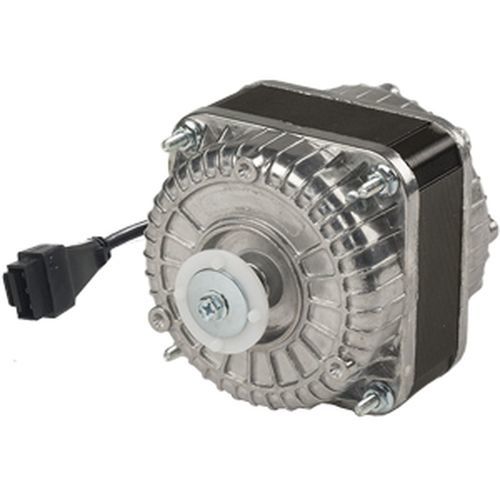

Motore AC 00, 18, 26, 26/18 series
asincrono60 VIP44

motore AC
motore AC
motore AC
motore AC
motore AC
motore AC
Aggiungi ai preferiti
Confronta con altri prodotti


Caratteristiche

AC/DC
AC
Tipo
asincrono
Tensione
60 V
Indice di protezione
IP44
Montaggio
a gabbia di scoiattolo
Potenza

Min.: 5 W
(0,007 hp)

Max.: 110 W
(0,15 hp)

Intensità

Min.: 0,2 A

Max.: 1,01 A

Velocità di rotazione

1.300 rpm, 1.550 rpm
(8.168,14 rad.min-1, 9.738,94 rad.min-1)

Temperatura di funzionamento

Min.: -30 °C
(-22 °F)

Max.: 50 °C
(122 °F)

Descrizione

Codice Serie xxP Descrizione Voltage: 100 ~120 V - 50/60Hz 220 ~240 V - 50/60Hz Output power: from 5W to 34W Protection: IP 42 (IP44 on request) Duty cycle: Continuous operating (S1) Insulation Class: B Protection Class: Class I Operating Temperature: -30°C ~ 50°C Available with mounting type: 00;18;26;18/26 Bearing Type: Sleeve Bearing Life expectancy: 20.000 hours Available with mounting type: 00;18;26;18/26 Certifications: CE; VDE only for 220 ~240 V;UL only for 100 ~120 V
