Controllore di gruppo elettrogeno per alimentazione di emergenza
GC250 S.I.C.E.S.

Caratteristiche

  • Applicazioni:

    per alimentazione di emergenza

Descrizione

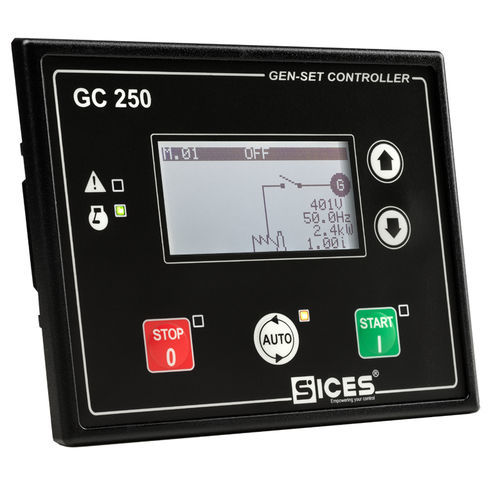

GC250 is the NEW AUTO-START and AMF (Automatic Mains Failure) controller for single gensets.

- 3 Phase mains (utility) sensing
- 3 Phase generator sensing
- 3 x CTs inputs
- True RMS measurements: kW, kVA, kVAr, pf, kWh (phase & total)
- 4 Configurable Digital Inputs
- 3 Analogue Inputs + 1 Extra Analogue Input (instead of a digital Input) + 1 for D+
- 4 Configurable Digital Output + 2 Digital output 10A
- Interface for MPU and J1939 engines as standard
- USB serial port for configuration and FW update
- Large LCD display 128x64 with LED backlight and ICONES
- Compact dimensions: 144(W)x108(H)x40(D)mm (34mm)
- IP65 as protection degree with gasket always included as standard
- Periodical test
- Data logger: 64 Events log (64 slow trend and 42 fast trend)
- Remote start and stop
- Embedded alarm horn
- Free configuration software BOARD PRG
