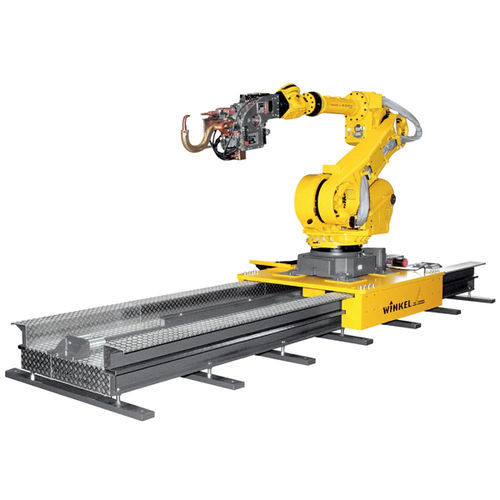

WINKEL RLE robot tracks are economical designed and built systems for load capacities up to 10 t robot weight and in combination of 6-axis robot with state of the art linear module.
RLE robot tracks are precise, hardened LM guides or with hardened flat bar with reduced backlash gear box.
Suitable for all robot brands and applications. We deliver ready to mount with suitable robot base, reduction gear box and central lubrication system. Precise positioning achieved by LM Guide and stiff steel costruction. For use as floor track or portal version.
RLE robot axis are used for applications as
handling robot
machine tool chaining
painting robots and welding robots.
Vantaggi
-6 assi robot
-Con guide a ricircolazione di sfere o guide piane
-Con riduttore di precisione a gioco ridotto
-Elevata rigidezza grazie alla struttura in acciaio
-Ottima flessibilità di impiego
-Eccellente rapporto qualità prezzo
Dati Tecnici
-Guide a ricircolazione di sfere temprate dalla dimensione 35 alla 65 oppure guide piane temprate
-Azionamento tramite cremagliera e pignone temprati
-Pignone di lubrificazione per la cremagliera
-Lubrificazione centralizzata
-Ripetibilità inferiore a ± 0,1 mm
-Livellamento semplice
-Velocità di funzionamento superiore a 5 m/s
-Con pedana a richiesta
