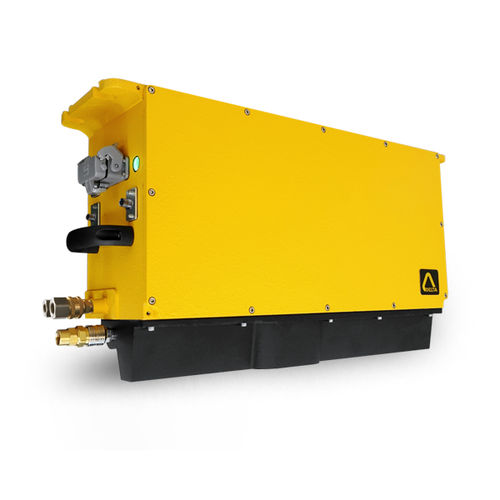

Apparecchio di misura della larghezza Digiscan XD4100

per laminatoio a caldo

- Width - Center - CropView - Thermal Profile - Designed for extremely harsh environment - Builtin Ethernet with OPCUA & ModbusTCP - Optional industrial network protocol - Easy installation and maintenance The Stereoscopic Width Gauge DigiScan XD4100, designed for installation above the roll tables in hot strip and plate mills, is state-of-the-art technology for measuring the width and centerline of strips or plates. The stereoscopic arrangement permits high on-line accuracy despite material hop, tilt, lateral movement, and thickness variation. For use at the roughing mill or finishing mill exit, the self-emitted optical radiation of the hot strip provides sufficient contrast for width determination. An optional front light or back light mode is available for installation where the rolling temperatures are below 600°C.
