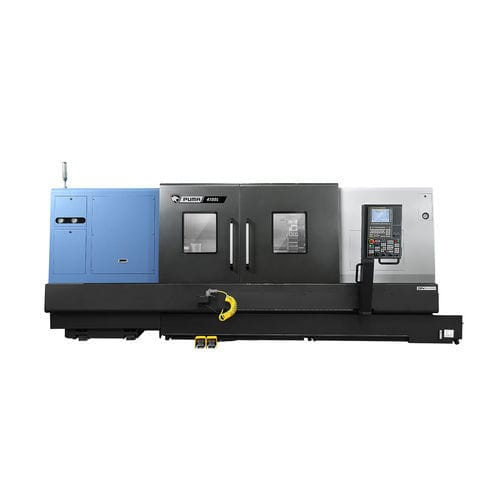

Centro di tornitura CNC PUMA 4100 series

2 assi12 utensili10 utensili

550 mm
(21,65 in)

1.000 rpm, 2.000 rpm, 15.000 rpm
(6.283,185 rad.min-1, 12.566,371 rad.min-1, 94.247,78 rad.min-1)

Max.: 3.152 mm
(124 in)

Min.: 922 mm
(36 in)

352 mm, 362 mm
(14 in, 14 in)

1.105 mm, 2.155 mm, 3.150 mm
(44 in, 85 in, 124 in)

16 m/min

20 m/min

35 kW, 37 kW, 45 kW
(47,6 hp, 50,3 hp, 61,2 hp)

1.584 Nm, 2.379 Nm, 3.280 Nm, 4.041 Nm, 4.466 Nm
(1.168 ft.lb, 1.755 ft.lb, 2.419 ft.lb, 2.980 ft.lb, 3.294 ft.lb)

4.654 mm, 5.774 mm, 7.024 mm
(183 in, 227 in, 277 in)

2.194 mm, 2.272 mm, 2.335 mm
(86 in, 89 in, 92 in)

Max.: 13.100 kg
(28.881 lb)

Min.: 9.450 kg
(20.834 lb)
