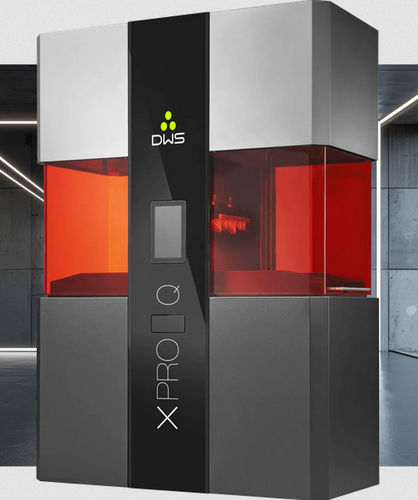

Stampante 3D di resina XPRO Q

industrialeper prototipazioneper fabbricazione di stampi

Overview
3D printing system developed for big production volumes and the ideal solution for large scale processes requiring maximum precision and resolution. XPRO Q ensures high productivity thanks to the wide working area 300 x 300 x 300 mm and print speed. It can use a wide range of materials developed by DWS and is able to materialize industrial applications with accuracy and speed. Available also in HR laser version (XPRO QHR).

Key features

• Quad laser system: 4 Solid State BlueEdge® laser sources working simultaneously to reduce production times while maintaining high resolution.
• Working area: 300 × 300 × 300 mm (x, y, z).
• Slice thickness: 10-100 micron (depends on material).
• Scanning method: Quad-Galvanometer.
• Touch screen: integrated touch screen monitor PC for machine control.
• Cluster configuration: suitable for cluster/stacked configurations to scale production.
• Ease of use: TTT System (Tank Translation Technology) to reduce wear and tear of tanks.
• Compatible with a wide range of DWS materials for industrial applications.

Areas of application

• Mechanics and parts
• Molding
• Production
• Prototyping

Technical data (table)
Technology: Laser Stereolithography (SLA)
Working area: (x)300 × (y)300 x (z)300 mm
Laser source: Solid State BlueEdge®
Slice thickness (depends on material): 10-100 micron
Scanning Method: Quad-Galvanometer
Software included: Nauta®+, Fictor®
Input File Format: .stl - .slc - .nauta - .fictor - .mkr - .3dm - .3ds - .ply - .obj - .lwo - .x
Machine size: 704 x 1446 x 2048 mm
Weight: 500 Kg
Operating Temperature and Humidity: 20°-25°C / 60%
Power Supply: AC 230V / 50 Hz
Electrical Consumption: 500W

Minimum requirements (table)
PC Minimum Requirements: Windows 8 or higher*
Memory: RAM 4 GB*
Graphics Card: OpenGL 2.0 compatible or above*
I/O Interfaces: 1 USB port - 1 Ethernet TCP/IP port
Connectivity: 1 Active internet connection

Caractéristiques / spécifications techniques

• Technology: Laser Stereolithography (SLA)
• Working area (build volume): 300 x 300 x 300 mm
• Laser: 4x Solid State BlueEdge® sources (quad-laser)
• Slice thickness: 10–100 μm (material dependent)
• Scanning: Quad-Galvanometer
• Included software: Nauta®+, Fictor®
• Supported input formats: .stl, .slc, .nauta, .fictor, .mkr, .3dm, .3ds, .ply, .obj, .lwo, .x
• Machine dimensions: 704 x 1446 x 2048 mm
• Weight: 500 kg
• Power: AC 230V / 50 Hz • Consumption: 500 W
• Operating conditions: 20–25°C / 60% humidity
• Control: integrated touch-screen PC
• Production scalability: cluster configuration capable
