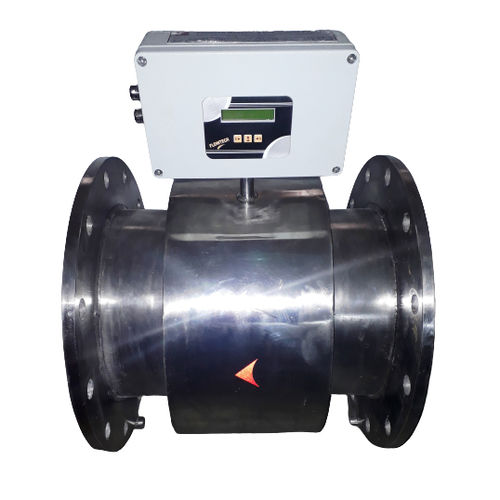

Misuratore di portata elettromagnetico

magneticovolumetricoper liquidi

Magnetic Flow Meter The third most common flow meter is the magnetic flow meter more commonly just called a mag meter. The physical principle at work is electromagnetic induction. The magnetic flow meter requires a conducting fluid, for example, water that contains ions, and an electrical insulating pipe surface, for example, a rubber-lined steel tube. Magnetic Flow Meters Are Used In The Various Industries Like: Chemical & petrochemical industries Oil & Gas industries Power plants Fertilizers Pharmaceutical industries Flowtech has been manufacturing IS standardized magnetic flow meters for its worldwide customers since about 2 decades. Flowtech Provides Many Salient Features In The Magnetic Flow Meter : Nominal diameter from 15mm to 400mm for a wide range of purposes. The material of Construction used is like MS, SS 304, and SS 316 & SS 316L for maximum life and durability. Flowtech use SS 316 as material of construction for Flow Tube Have maximum process temperature of 150oC Have maximum process pressure of 25 kg/cm2 2 Line Alfa Numeric LCD display of integral/Remote version in both standard units M3 as well as Litres Accuracy : ± 1% FSD Optional: ±0.5% FSD Protection Class for Sensor: IP 65 Cable Length for Remote: 10 meters Incline Flange Type of Installation Repeatability : 0.3% Power Supply: 230 VAC, 110 VAC & 24 VDC Output: Std. 4 – 20 mA
