Manometro assoluto LEO Ultimate

relativodigitaleelettronico

Product Description

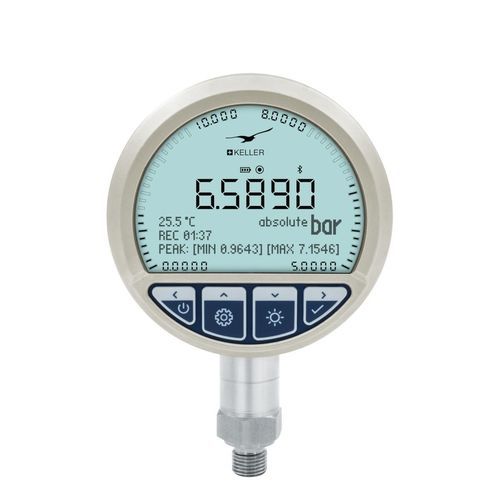

The LEO Ultimate digital pressure gauge is a high-precision measuring instrument designed for demanding applications in calibration, service and industry. It combines piezoresistive measurement technology with advanced analysis functions, enabling both absolute and relative pressure measurements in a single device. Thanks to the integrated barometer, it is possible to switch between the two pressure types at any time without the need for additional sensors.
The various measurement modes enable the analysis of static and dynamic pressure profiles as well as leakage tests. This range is complemented by a data logger function for recording over extended periods.
Parameterisation and data retrieval are carried out via USB-C or wirelessly via Bluetooth. Measurement data can be visualised and documented with the PressureSuite software.
The robust metal housing with IP67 protection and the easy-to-read display allow the device to be used even under demanding environmental conditions.

Key specifications

• Pressure Ranges: -1...1 to 0…1000 bar / -15…15 to 0…15000 psi
• Accuracy: ± 0,05 %FS (optional ± 0,01 %FS)
• Total Error Band: ± 0,05 %FS @ 0…50 °C
• Interfaces: USB 2.0 (USB-C) / Bluetooth BLE
• Special characteristics: High-precision reference instrument

caractéristiques / spécifications techniques

• Measurement technology: piezoresistive sensor
• Pressure types: absolute and relative pressure measurements (switchable via integrated barometer)
• Integrated barometer for switching between absolute and relative modes without additional sensors
• Measurement modes: static and dynamic pressure profiling, leakage testing
• Data logger function for long-term recording
• Parameterisation and data retrieval: USB-C and Bluetooth BLE
• Compatibility: measurement data visualisation and documentation via PressureSuite software
• Housing: robust metal housing
• Protection class: IP67
• Display: easy-to-read display suitable for demanding environmental conditions
• Accuracy options: standard ±0.05 %FS, optional ±0.01 %FS
• Total error band: ±0.05 %FS in range 0…50 °C
• Pressure ranges available: from negative/near-zero ranges (-1...1) up to 0…1000 bar (or -15…15 to 0…15000 psi)
• Interfaces: USB 2.0 and Bluetooth BLE for wired and wireless operation
• Intended use: calibration, service and industrial high-precision reference measurements
