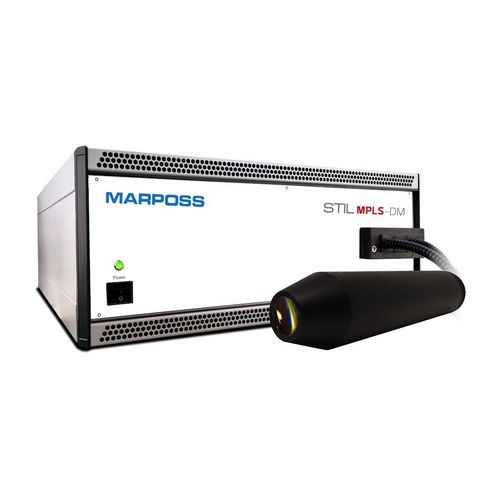

Apparecchio di misura di spessore MPLS180-DM

di distanzaotticosenza contatto

Based on STIL's chromatic confocal technology, ChromaLine sensor family represents the next step in industrial integration. Thanks to its accuracy, its robustness and a life span of several years without any maintenance, MPLS sensors are adapted to the requirements of on-line control. With 180 measuring points aligned along a line ranging from 1 to 12 millimeters, the new MPLS-DM version enables high-quality inspection with new capabilities, and working frequencies up to 2kHz in standard mode, and even 6kHz with a reduced sensor measuring range. • Versatile: measures any material capable of reflecting white light (e.g. metal, glass, plastic, paint films, liquids) • Industrial thanks to its optical head made exclusively of passive components • Up to 360,000 measured points/second allows to work in all industries in standard 2Klines/second • More than 1 million points/second are acquired on dedicated applications at 6Klines / second • Distance and thickness measurements • High measurement accuracy • Availability of SDK and protocol commands for easy integration into any system • Synchronized measurement with encoder for dynamic acquisitions • Ethernet communication
