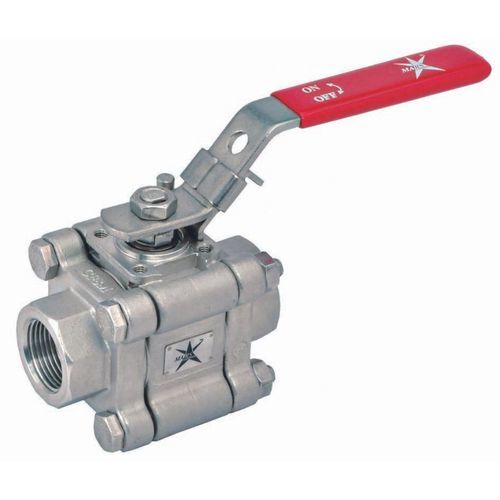

Valvola a sfera 83 series

manualedi arresto3 pezzi

Panoramica
La Series 83 è una gamma di valvole a sfera 3 pezzi resistenti al fuoco con 32 varianti disponibili in diverse dimensioni e configurazioni.

Riepilogo prodotto

• Progetto: 3 pezzi, costruzione resistente al fuoco
• Sedi: PTFE / RTFE
• Materiali del corpo: CF8M e WCB
• Opzioni di passaggio: full port e reduced port
• Taglie indicate: 1/4" fino a 2"
• Pressioni nominali: fino a 2000 PSI per le taglie più piccole, 1500 PSI per alcune taglie maggiori

Modelli / varianti (SKU | Taglia | Passaggio | Corpo | Pressione nominale | Sedi | Progetto | Prezzo)
V83-FS-1-4IN-FULL-PORT-CF8M | 1/4" | Full | CF8M | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £33.73
V83-FS-1-4IN-FULL-PORT-WCB | 1/4" | Full | WCB | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £27.10
V83-FS-3-8IN-FULL-PORT-CF8M | 3/8" | Full | CF8M | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £33.73
V83-FS-3-8IN-FULL-PORT-WCB | 3/8" | Full | WCB | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £27.10
V83-FS-1-2IN-FULL-PORT-CF8M | 1/2" | Full | CF8M | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £36.50
V83-FS-1-2IN-FULL-PORT-WCB | 1/2" | Full | WCB | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £29.26
V83-FS-1-2IN-REDUCED-PORT-CF8M | 1/2" | Reduced | CF8M | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £34.65
V83-FS-1-2IN-REDUCED-PORT-WCB | 1/2" | Reduced | WCB | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £27.87
V83-FS-3-4IN-FULL-PORT-CF8M | 3/4" | Full | CF8M | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £44.81
V83-FS-3-4IN-FULL-PORT-WCB | 3/4" | Full | WCB | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £35.88
V83-FS-3-4IN-REDUCED-PORT-CF8M | 3/4" | Reduced | CF8M | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £37.42
V83-FS-3-4IN-REDUCED-PORT-WCB | 3/4" | Reduced | WCB | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £30.03
V83-FS-1IN-FULL-PORT-CF8M | 1" | Full | CF8M | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £58.67
V83-FS-1IN-FULL-PORT-WCB | 1" | Full | WCB | 2000 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £46.97
V83-FS-1IN-REDUCED-PORT-CF8M | 1" | Reduced | CF8M | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £47.74
V83-FS-1IN-REDUCED-PORT-WCB | 1" | Reduced | WCB | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £38.50
V83-FS-1-1-4IN-FULL-PORT-CF8M | 1 1/4" | Full | CF8M | 1500 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £81.93
V83-FS-1-1-4IN-FULL-PORT-WCB | 1 1/4" | Full | WCB | 1500 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £65.60
V83-FS-1-1-4IN-REDUCED-PORT-CF8M | 1 1/4" | Reduced | CF8M | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £61.60
V83-FS-1-1-4IN-REDUCED-PORT-WCB | 1 1/4" | Reduced | WCB | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £49.13
V83-FS-1-1-2IN-FULL-PORT-CF8M | 1 1/2" | Full | CF8M | 1500 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £116.89
V83-FS-1-1-2IN-FULL-PORT-WCB | 1 1/2" | Full | WCB | 1500 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £88.70
V83-FS-1-1-2IN-REDUCED-PORT-CF8M | 1 1/2" | Reduced | CF8M | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £92.25
V83-FS-1-1-2IN-REDUCED-PORT-WCB | 1 1/2" | Reduced | WCB | — | PTFE / RTFE | 3-piece heavy duty, fire-safe | £70.22
V83-FS-2IN-FULL-PORT-CF8M | 2" | Full | CF8M | 1500 PSI max. | PTFE / RTFE | 3-piece heavy duty, fire-safe | £156.16

Note
• I prezzi indicati sono i prezzi per singola variante come riportati nella pagina (valuta GBP).
• Le opzioni di corpo CF8M e WCB sono disponibili su varie taglie e tipi di passaggio.
