Rilevatore di fughe d'acqua Correlux C-3

acusticoportatilecompatto

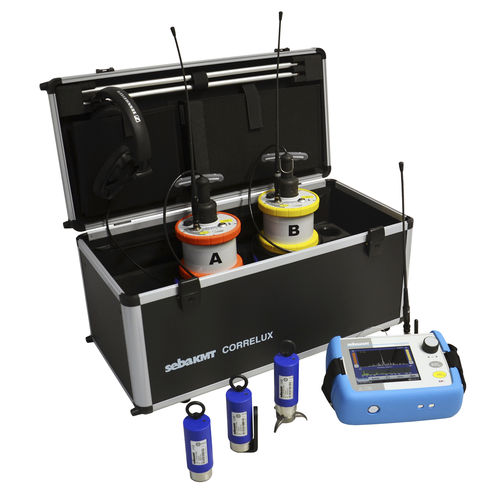

Correlux C-3 - Hybrid correlator for online and offline measurements Special features: ■ Easy to use with touch display ■ Multi-correlation without pipe parameter input ■ Long operating time and inductive sensor charging ■ Online and offline correlation ■ Pinpoint location using multi-sensors or ground microphone ■ Perfect for plastic pipes and pipelines Application: ■ Prelocation, Pinpointing The Correlux C-3 correlator locates leaks in drinking water pipes. Pressurized water at the leak location creates a noise which travels out in all directions of the pipe. This noise is recorded, amplified and sent wirelessly to the correlator by two sensors (piezo microphone, hydrophone) which are attached to the pipe (e.g. valve, hydrants). The Correlux C-3 compares both signals (correlation) and calculates the exact distance to the leakage on the basis of the delay time of the signals, the sensor distance and the sound velocity in the pipe.
