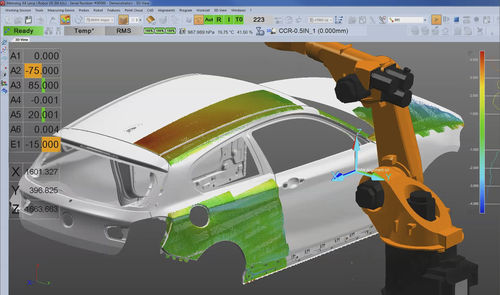

Software di simulazione di movimento Metrolog X4 i-Robot

di misuradi metrologia multi-sensoriper sistema di misurazione

The Metrolog X4 i-Robot technology is suitable for all industrial robots; it provides a production metrology solution accurate, reliable and flexible. Metrolog X4 i-Robot is perfectly suited for applications requiring flexibility and productivity while providing high metrological accuracy. - Measuring accuracy fully independent of robot’s positioning precision. - Robot movements perfectly synchronized with measurement. - Robot trajectory entirely controlled by Metrolog X4 part program. The Metrolog X4 i-Robot measuring system is based on a high speed acquisition laser scanner attached to a multi-axes robot wrist. The robot, of any type or brand, without specific accuracy, behaves as a simple tool holder. The measuring accuracy is provided, either by a separate tracking camera following the laser sensor box equipped with positioning LEDs, or by a laser tracker system. The main applications can be found in the automotive, aerospace and their sub-contractors for the manufacturing lines metrology control. X4 i-ROBOT, A CONSISTENT CELL THAT WORKS IN COOPERATION - Scans almost all shapes of parts due to enhanced sensor performance. - A laser tracker or photogrammetric system for accurate 3D positioning of optical scanner within the measuring area. - Metrolog X4 software for comparative analysis of dimensional characteristics of the part compared to its CAD definition, flush and gap, sections and surfaces. - Full control of robot directly from Metrolog X4 part programs.
