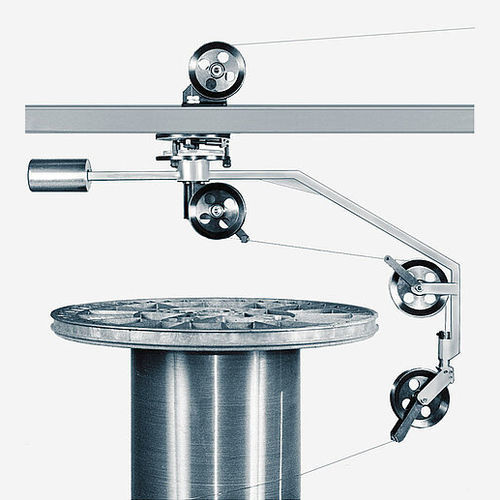

Flyer Payoff per montaggio su telaio
per bobine Ø 630 - 800 mm
F30G-N1000/1250
Flyer come sopra
ma per bobine Ø 1000 - 1250 mm
Ø flangia: 630 - 1250 mm
Ø filo Cu-, Al: 1,0 - 3,0 mm
Ø Filo d'acciaio duro: max. 1,8 mm
Ø Filo d'acciaio morbido: max. 2,2 mm
Velocità del filo: max. 200 m/min
Tensione del filo: min. 4 N, max. 90 N
---
