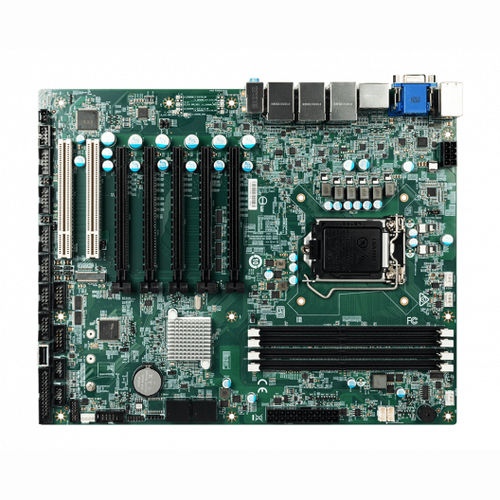

ATX con processore Intel® Coffee Lake-S e Coffee Lake Refresh-S Xeon®, Core™ i7/i5/i3, Pentium®, Celeron® di 8a/9a generazione e Intel® C246/Q370 per soluzioni ad alte prestazioni
Intel® 9th/8th Gen Coffee Lake Refresh-S/Coffee Lake-S Series con C246/Q370
4 UDIMM DDR4 2666 MHz ECC/non-ECC fino a 128GB
Tripli display indipendenti: VGA, 2 DP, HDMI
lAN a 3 GbE con RJ-45
1 PCIe x16 (Gen 3) o 2 PCIe x8 (Gen 3), 3PCIe x4 (Gen 3), 2 slot PCI
Chiave M.2 M, 4 SATA 3.0 per l'archiviazione
SATA RAID 0/1/5/10
6 USB 3.2 Gen 2, 7 USB 2.0, 6 COM (2 RS-485), GPIO, LPT, PS/2, Audio, S/PDIF, 3 FAN di sistema
TPM 2.0 integrato (in opzione)
SMBus, I2C, iAMT
---
