Bilancia commerciale FPFL series

elettronicaa piattaformainterna

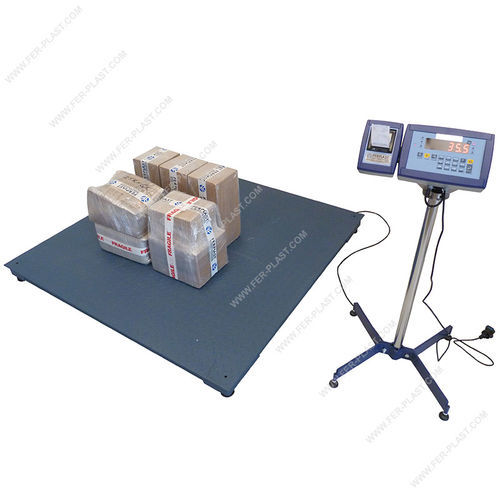

Monobloc electronic floor weighing platforms, economical and reliable. CE-M approvable.FLOOR SERIES FPFL FLOOR SCALES - INDICATOR EXCLUDEDThe FLOOR series scales are normally used in all types of industrial and commercial environments for weighing pallets, boxes, or packages. They can be installed on the floor or on existing packaging lines. The scales are available in standard version or with approved cells for third-party sales.TECHNICAL FEATURES OF THE WEIGHING PLATFORM· Operates with 4 shear-beam load cells of 350 Ohm in nickel-plated steel, approved according to OIML R60 C3 (3000 divisions), protection grade IP67.· Monobloc structure in oven-painted steel tubing, adjustable support feet, and level bubble.· Fixed lobed loading surface in steel sheet.· Power supply Max. 15 Vdc.· Hermetic junction box, IP67 cabling with 3m shielded cable for connection to the indicator. CodeDimensions (LxWxH)Max capacity kgStandard division grCE-M division gr (*)FPFLA 6001000x1000x120 mm600200200FPFLA 15001000x1000x120 mm600/1500200/500500FPFLM 6001000x1250x120 mm600200200FPFLM 15001000x1250x120 mm600/1500200/500500FPFLB 6001250x1250x120 mm600200200FPFLB 15001250x1250x120 mm600/1500200/500500FPFLD 15001250x1500x120 mm1500500500FPFLD 30001250x1500x120 mm1500/3000500/10001000FPFLE 15001500x1500x120 mm1500500500FPFLE 30001500x1500x120 mm1500/3000500/10001000(*) CE-M divisions (approved scale) only obtainable with the relevant options, in combination with our indicators.WEIGHT INDICATORS:The weight indicators can be placed on the floor, hung on the wall, or placed on the support column.- FPDFWL BASE weight indicatorFPDFWL BASE indicators equipped with waterproof functional keyboard with 5 keys, 25 mm backlit LCD display with 6 high-contrast digits and icons for active function indication. Thanks to the ABS IP54 enclosure, they are easy to clean and resistant in harsh and corrosive environments.- FPDFWKPXP weight indicator with integrated printerWeight indicator with waterproof numeric-functional keyboard with 17 keys, equipped with 25 mm backlit LCD display with 6 high-contrast digits and icons for active function indication. Integrated thermal printer and calendar clock. The waterproof ABS IP65 enclosure is easy to clean and resistant, suitable for weighing in harsh and corrosive environments.- FPDFWDXT weight indicatorWeight indicator with large 40 mm high-brightness red LED display, suitable for viewing from any angle and at great distance. Equipped with stainless steel enclosure with IP68 protection against rain and dust, easy to clean and resistant in harsh and corrosive environments.- FPDFWLIP stainless steel weight indicatorStainless steel IP68 weight indicator equipped with functional 5-key keyboard with 40 mm color backlit LCD display with 6 high-contrast digits and icons for active function indication. Ideal for applications in humid and harsh environments and in association with stainless steel scales. With internal power supply.Adhesive thermal paper for printer:Box of 50 rolls of adhesive thermal paper, 15 m each.Width 57 mm, hole 18 mm, external diameter 50 mm – Unit price minimum order 1 box of 50 pieces.OPTIONAL:- Support column for weight indicators- Stainless steel support column for weight indicators- CE-M approval for third-party salesMonobloc electronic floor weighing platformsCE-M approvable4 shear-beam load cells, IP67Oven-painted steel structureAdjustable feet and level bubbleFixed lobed steel loading surfaceMax. power supply 15 VdcHermetic junction box, IP67 cablingMultiple models and capacities availableCompatible with various weight indicatorsOptional: support columns, CE-M approval
