Bilancia a piattaforma con profilo basso FPL series

con contrappesiin acciaioa tenuta stagna

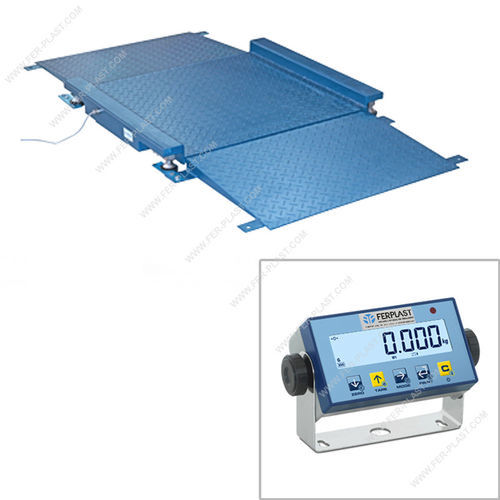

Floor scales with loading ramps FPL series with low profile - Indicator excludedLow-profile platforms, with structure and checkered ramps in painted steel. They are suitable for weighing carts and pallet trucks as they are equipped with loading/unloading ramps and side edges on the weighing platform. Available in standard or CE-M approved version.Technical FeaturesOperates with 4 shear-beam load cells of 350 Ohm in nickel-plated steel, approved according to OIML R60 C3 (3000 divisions), protection grade IP67.Structure and checkered loading surface in steel, oven-painted, blue color RAL 5007.Adjustable anti-shock articulated feet and level bubble.Power supply from 5 to 15 Vdc.Hermetic junction box, IP67 wiring with 5m shielded cable for connection to the indicator.Side edges and double ascent/descent ramp, standard.Models and CharacteristicsCodeDimensions (LxWxH)Max Capacity (kg)Standard Division (g)CE-M Division (g)FPLC800x800x52 mm600200200FPLA1000x1250x52 mm1500500500FPLB1250x1500x52 mm200010001000(*) CE-M divisions obtainable only with the relevant options, in combination with our indicators.OPTIONAL:The weight indicators can be placed on the floor, hung on the wall, or placed on the support column.- FPDFWL base weight indicatorFPDFWL BASE indicators equipped with waterproof functional keypad with 5 keys, 25 mm backlit LCD display with 6 high-contrast digits and icons for active function indication. Thanks to the ABS IP54 enclosure, they are easy to clean and resistant in harsh and corrosive environments.- FPDFWKPXP weight indicator with integrated printerWeight indicator with waterproof numeric-functional keypad with 17 keys, equipped with 25 mm backlit LCD display with 6 high-contrast digits and icons for active function indication. Integrated thermal printer and calendar clock. The waterproof ABS IP65 enclosure is easy to clean and resistant, suitable for weighing in harsh and corrosive environments.- Support column for weight indicators- CE-M approval for third-party salesLow-profile platforms with ascent/descent ramp on both sides. CE-M approvable.Technical Specifications / FeaturesLow-profile painted steel structure and rampsCheckered steel loading surface4 nickel-plated steel shear-beam load cells, OIML R60 C3, IP67Adjustable anti-shock feet, level bubbleHermetic junction box, IP67, 5m shielded cableSide edges and double ramp includedPower supply: 5-15 VdcAvailable in standard or CE-M approved versionOptional: FPDFWL base indicator, FPDFWKPXP indicator with printer, support column, CE-M approval
