Rampa di carico per bordi FPH series

per veicoloper suoloindustriale

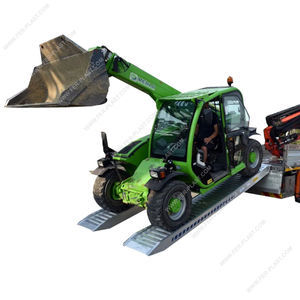

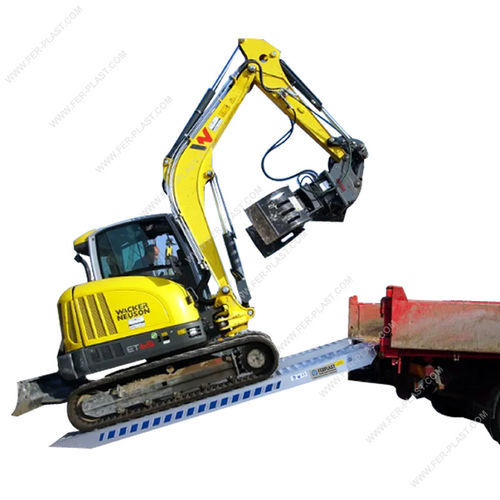

Loading Ramps Series FPH190-220The ramps of the FPH190-220 series are perfect equipment for loading heavy vehicles, designed to ensure maximum strength and safety during loading and unloading operations of high-tonnage vehicles. Ideal for use in the agricultural and earthmoving sectors, these ramps are the perfect solution for use with heavy excavators, large tractors, combine harvesters, and other agricultural or industrial vehicles.Constructed with high-strength materials and reinforced structural profiles, they offer a load capacity of up to 12,000 kg, ensuring solidity even in the most extreme working conditions. The available length up to 5,000 mm allows for a controlled slope suitable for high beds and platforms, ensuring safety even during the maneuvering of tracked vehicles.The ramps are available both in the version with lateral safety edge with a height of 43 mm (for FPH190 models) and 50 mm (for FPH220 models), useful to prevent lateral slipping, and in the version without edge.The FPH220 version has a maximum internal width of 500 mm, but on request, a version with a greater width of 550 mm is also available, ideal for those who need a wider transit area.All models are supplied with a step anti-slip surface, designed to ensure maximum grip during use.LENGTH SELECTION:The choice of length is a fundamental aspect to ensure safe use of the ramp, which is calculated based on several factors:Loading height: The distance between the ground and the point where the ramp ends (usually the bed of a van). The greater this height, the longer the ramp must be to avoid too steep inclines.Ramp inclination: It is advisable to maintain a maximum slope between 20% and 30% depending on the type of load.Product weight: Another fundamental aspect is the weight of the vehicle/equipment to be loaded. The shorter the ramp, the greater its capacity, but at the same time, the greater the inclination it will have.Based on this, we can roughly determine that:- For a height of 95 cm, it is recommended to use a ramp with a length of 3500 mm- For a height of 110 cm, a ramp with a length of 4000 mm- For a height of 125 cm, a ramp with a length of 4500 mm- For a height of 145 cm, a ramp with a length of 5000 mmTECHNICAL FEATURES FPH190-220MODELStructureCapacity (axle distance 1500 mm)Capacity (axle distance 1750 mm)Capacity (axle distance 2000 mm)LengthInternal widthExternal widthWeight per pairFPH190-35SNo edge9700 Kg10450 Kg10450 Kg3500 mm500 mm610 mm140 KgFPH190-40SNo edge7700 Kg8580 Kg9650 Kg4000 mm500 mm610 mm163 KgFPH190-45SNo edge6400 Kg6980 Kg7680 Kg4500 mm500 mm610 mm180 KgFPH190-50SNo edge5450 Kg5870 Kg6360 Kg5000 mm500 mm610 mm200 KgFPH190-35BWith edge9700 Kg10450 Kg10450 Kg3500 mm500 mm595 mm140 KgFPH190-40BWith edge7700 Kg8580 Kg9650 Kg4000 mm500 mm595 mm160 KgFPH190-45BWith edge6400 Kg6980 Kg7680 Kg4500 mm500 mm595 mm174 KgFPH190-50BWith edge5450 Kg5870 Kg6360 Kg5000 mm500 mm595 mm196 KgFPH220-40SNo edge1200 Kg12000 Kg12000 Kg4000 mm500 mm620 mm173 KgFPH220-45SNo edge9600 Kg12000 Kg12000 Kg4500 mm500 mm620 mm194 KgFPH220-50SNo edge8175 Kg8800 Kg9535 Kg5000 mm500 mm620 mm216 KgFPH220-40BWith edge12000 Kg12000 Kg12000 Kg4000 mm500 mm580 mm167 KgFPH220-45BWith edge9600 Kg12000 Kg12000 Kg4500 mm500 mm580 mm188 KgFPH220-50BWith edge8175 Kg8800 Kg9535 Kg5000 mm500 mm580 mm210 KgThe ramps are supplied complete with a hole but without anchoring accessories; it is the customer's responsibility to equip themselves with the appropriate fixing systems according to their operational needs.Perfect for loading heavy vehicles in agriculture and earthmovingHigh-strength materials and reinforced profilesLoad capacity up to 12,000 kgAvailable length up to 5,000 mmAvailable with or without lateral safety edgeAnti-slip step surfaceInternal width up to 500 mm (550 mm on request for FPH220)Technical table with all models and specifications
