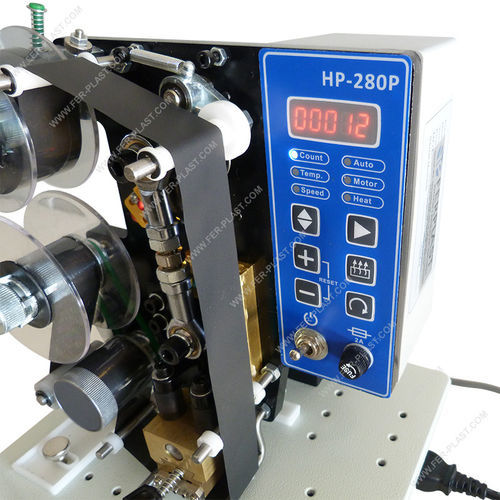

Macchina di marcatura a caldo FPTR280

a transfer termicodi cartaper pelle

Semiautomatic thermal transfer marker for tags and boxes.FPTR280 MARKER - Recommended for medium-high productionsHot foil (inked ribbon) thermal transfer marker, ideal for marking tags and boxes.Operation:The operator must insert the characters into the character holder and turn on the marker, setting the appropriate temperature for operation.The operating temperature varies depending on the thickness and type of product to be marked. Once the marker has reached the temperature, marking can proceed.Marking with FPTR280 marker:The operator must position the product under the character holder. By pressing the electric pedal, the marker quickly performs the marking (in about 2 seconds).This marker is recommended for printing expiration dates or batches.Being an electric model, the print quality is very good and does not vary from time to time as the descent of the characters occurs vertically and the pressure is always constant.The head with the characters transfers the ink from the inked ribbon to the product, creating an indelible and slightly engraved mark.MARKERFPTR280Motorized operation with manual/automatic cyclePrinting with thermal transfer ribbon, clean and indeliblePossibility to print on paper, cardboard, leather, plastic, etc.Head temperature adjustmentUse for printing movable characters or brass clichésPower supply220V single-phaseAbsorbed power200 WPrinting speed20-50 pcs/minPrinting widthmax. 30 mm15 characters x 3 lines - h 4 mmMachine dimensions220x260xh 320mmWeight7 KgTHE MARKER IS SUPPLIED WITH 1 NUMERIC CHARACTER KIT INCLUDEDThe characters included in the kit are those indicated in the following table (mainly numeric).The characters are only sold in complete kits. It is not possible to request single characters.CHARACTERQUANTITYCHARACTERQUANTITY08D115E125F134L144M154O163P174T184X193/2SPACE10.2THE MARKER IS SUPPLIED WITH 1 NUMERIC CHARACTER KIT INCLUDEDSome alphabetic characters are also included as a gift.The characters are only sold in complete kits. It is not possible to request single characters.ALPHABETIC KIT AZThe AZ alphabetic kit, which can be ordered separately, includes 1 LETTER of each type from A to Z.The letters present in the two kits (numeric and alphabetic) have a slight thickness difference.If, for example, you need to write a text containing two "F" letters, we recommend not mixing them but possibly purchasing two alphabetic kits.Consumable materialThe inked ribbon has a length of 122 meters. Each roll allows for approximately 4000 stampings.Motorized operation with manual/automatic cyclePrinting with thermal transfer ribbon, clean and indeliblePossibility to print on paper, cardboard, leather, plastic, etc.Head temperature adjustmentUse for printing movable characters or brass clichésPower supply: 220V single-phaseAbsorbed power: 200 WPrinting speed: 20-50 pcs/minPrinting width: max. 30 mm15 characters x 3 lines - h 4 mmMachine dimensions: 220x260xh 320mmWeight: 7 Kg
