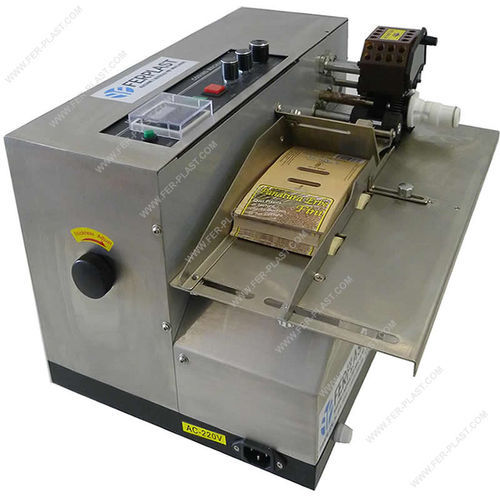

Macchina di marcatura a rullo FPMR 380

a caldoper alluminiodi carta

Automatic rotary marker for hot stamping on tags and boxes. FPMR 380 AUTOMATIC ROTARY MARKER WITH SOLID INK (Complete device for collecting and stacking printed tags) Automatic rotary marker with feeder for hot stamping on paper, plastic, aluminum sheets, etc.; Uses the proven technology of solid ink rollers, the ink is activated by heating and allows immediate drying and indelible printing on any support. The product is placed in an adjustable loader, the feeder picks up the object to be printed one by one and the flat belts transport it under the printing roller. The print position can be adjusted millimetrically using the photocell and two timers. The number of pieces to be printed is programmed from the keypad. Uses numbers and letters (see table) for printing production date, expiry date, batch number, etc. to maintain product traceability over time. Particularly suitable for medium/high productions in the food sector and wherever there is a need to print dates on labels. - Model: FPMR 380 - Printing speed: 60-120 pieces/minute - Box length: 55-300 mm - Box width: 50-160 mm - Character type: brass - Character height: 2.5/4 mm - Power supply: 220 V - Power consumption: 180 W - Machine dimensions: 440 x 345 x 300 mm - Weight: 23 kg The marker is supplied complete with 1 numeric character kit, to be chosen between 2 mm and 3 mm. The choice must be specified when ordering. If not specified, one of the two will be supplied at our discretion. The characters included in the numeric kit are those indicated in the tables below (mainly numeric). It is possible to order more boxes of characters or, if it is necessary to write letters in the batch, add the AZ alphabetic kit (2 or 3 mm). 2 mm CHARACTER KIT (CODE FPMR 300) - 0: 12 - 1: 10 - 2: 8 - 3: 4 - 4: 4 - 5: 4 - 6: 4 - 7: 4 - 8: 4 - 9: 4 - D: 1 - E: 1 - F: 1 - L: 1 - M: 1 - O (Letter): 1 - P: 1 - T: 1 - X: 1 3 mm CHARACTER KIT (CODE FPMR 380) - 0: 10 - 1: 8 - 2: 6 - 3: 4 - 4: 4 - 5: 4 - 6: 4 - 7: 4 - 8: 4 - 9: 4 - D: 2 - E: 2 - F: 2 - L: 2 - M: 2 - O (Letter): 2 - P: 2 - T: 2 - X: 2 The marker uses solid ink rollers. With each roller, about 20,000 markings can be made. The roller's lifespan depends on the number of characters printed, the impression force applied, and the set temperature. Optional - Alphabetic kit (AZ): The AZ alphabetic character kit contains 1 letter for each type (including W and Y) - Modification for printing on self-assembling boxes. The marker is suitable for printing on standard boxes and cards. To print on self-assembling boxes (thicker than standard), modifications are necessary as the high thickness could cause jams during printing. All modifications are made specifically following tests on customer samples.
