Transpallet elettrico FHPX540/115EP

12 Vpesatoreper movimentazione

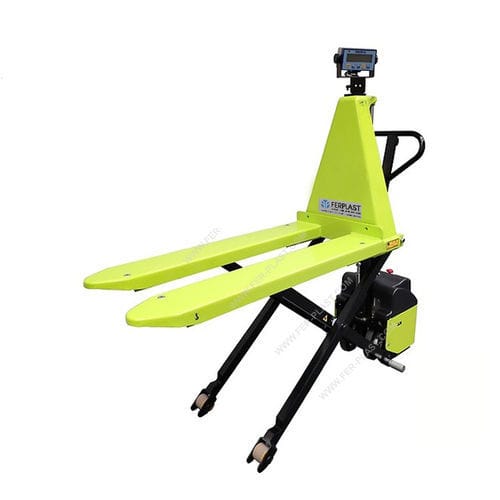

TRANSPALLET ELEVATORE FHPX 1000 P - ELECTRIC LIFTING WEIGHERScissor lift pallet truck, weigher, with manual push and electric lifting up to 715 mm. Fork dimensions 1185x565 mm.Designed with a precise and easy-to-use weighing device, allowing simultaneous lifting and weighing of loads, making it suitable for all weighing and handling operations.The scale is equipped with a simple and intuitive LCD display, located on the front of the pallet truck, which can be conveniently rotated and adjusted as needed. The display covers a 270° angle on the tiller axis, allowing the operator to always keep weighing data under control in different loading and unloading situations.It can be used as a normal pallet truck, but when the load exceeds 400 mm from the ground, stabilizers are activated to prevent movement.It is commonly used in manual palletizing and depalletizing operations to reduce physical effort and increase productivity.The standard color of the lifters is green.MODELFHPX540/115EPCapacity (Q)1000 KgLifting height (h3)715 mmMovementmanualLiftingelectricLifting speed0.13 m/sLowering speed0.13 m/sFork length (l)1185 mmFork width (e)180 mmFork thickness (s)70 mmMinimum fork height (h13)90 mmTurning radius (Wa)1515 mmNumber of front wheels2 rubberFront wheel width50 mmFront wheel diameter200 mmNumber of rear wheels2 polyRear wheel width60 mmRear wheel diameter70 mmTrolley weight215 KgBattery typecar typeStandard battery12V 60AhLifting motor power1.6 KwOperating conditions-12 + 40 °CSupplied with battery and standard charger.SCALEType DFWLDisplay digits6Digit height25 mmKgYESLbsYESTareYESAuto-offYESTotalizerYESPiece counterYESAutonomy40 hFull scale accuracy0.05%Load cells4Division0.5 KgBattery6V 4AhOPTIONAL:GEL BATTERY VERSIONEquipped with battery status indicator and 12V 50Ah C20 battery, particularly suitable for deep cycle applications. The gel battery is safer (no acid leaks) and does not require topping up.LITHIUM ION BATTERY VERSIONEquipped with long-life 24V 30Ah lithium-ion battery. Fast charging and possibility of intermediate charges. Greater safety, as the battery is acid-free and maintenance-free.SELF-LEVELING SYSTEMAutomatic system that, via a sensor, adjusts the fork height, keeping the desired working height constant. Equipped with safety micro-switch for ascent and descent. The sensor is adjustable by the operator. An acoustic and optical signal warns the operator in case of fork movement.APPROVALCE-M OIML R-76/EN weighing approval valid only for commercial purposes in relation to third parties and not valid for tax purposes.THERMAL PRINTERThermal printer for weighing, useful to ensure immediate and traceable control of the weighings performed.COLORS AND FEATURESThe presented trolleys are of European production. They are high-quality models suitable for professional use.The standard color of the lifters is green, however, it is not binding as it may vary without notice depending on availability.Model: FHPX540/115EPCapacity: 1000 KgLifting height: 715 mmManual movement, electric liftingLifting/lowering speed: 0.13 m/sFork dimensions: 1185x565 mmFork thickness: 70 mmMinimum fork height: 90 mmTurning radius: 1515 mmFront wheels: 2 rubber, 50x200 mmRear wheels: 2 poly, 60x70 mmTrolley weight: 215 KgBattery: 12V 60Ah (car type)Lifting motor: 1.6 KwOperating temperature: -12 to +40 °CScale: DFWL, 6 digits, 25 mm height, kg/lbs, tare, auto-off, totalizer, piece counter, 40 h autonomy, 0.05% accuracy, 4 load cells, 0.5 Kg division, 6V 4Ah battery
