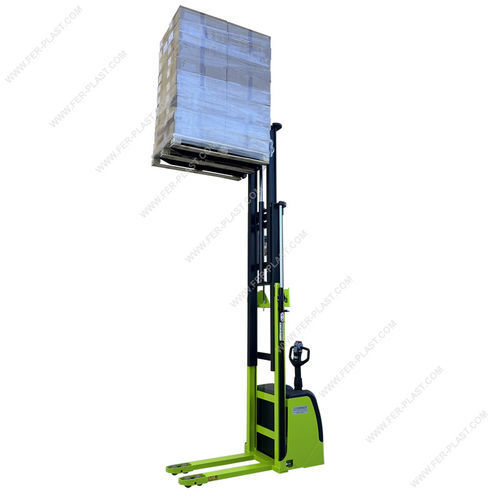

Carrello elevatore elettrico FPLX 14 series

a guida a bordoper movimentazione

Completely electric professional stackers - FPLX PRO TRIPLEX series.The indicated price includes 1 traction battery 24V-225Ah and a high-frequency charger for the 24V-225Ah traction battery.The FPLX PRO TRIPLEX series represents the new range of robust and professional stackers suitable for frequent use during the working day. They have an autonomy of up to 6 hours.This type of trolley is also available in the FREE LIFT (FL) version, designed with total free lift, allowing the pallet to be lifted and moved without increasing the minimum footprint. This makes it possible to use the machine even in work environments with low heights.All versions are characterized by very high quality and are equipped with electric drive and lifting.Main features:High maneuverability: agile and easy to use, the new model has a reduced lateral footprint of 800 mm.The position of the wheels always within the width of the vehicle allows handling goods in tight spaces and corridors.Easy and quick battery maintenance thanks to the new ABS cover opening.Precise and integrated control system with safety switch and battery status indicator.Ergonomic tiller.Available models:FPLX PRO 14/45 TRIPLEX capacity 1400 Kg lifting height 4410 mmFPLX PRO 14/45 TRIPLEX-FREELIFT capacity 1400 Kg lifting height 4410 mmFPLX PRO 14/50 TRIPLEX capacity 1400 Kg lifting height 5025 mmFPLX PRO 14/50 TRIPLEX-FREELIFT capacity 1400 Kg lifting height 5025 mmFPLX PRO 14/42 TRIPLEX capacity 1400 Kg lifting height 4110 mmFPLX PRO 14/42 TRIPLEX-FREELIFT capacity 1400 Kg lifting height 4110 mmATTENTION: All stackers are individually tested before being professionally packed and shipped and are complete with CE certification.Specific technical data:MODELFPLX 14/45 TRFPLX 14/45 TR FLFPLX 14/50 TRFPLX 14/50 TR FLCapacity1400 kg1400 kg1400 kg1400 kgLifting height4410 mm4410 mm5025 mm5025 mmFree lift250 mm1470 mm250 mm1675 mmDriveelectricelectricelectricelectricDrive speed6 km/h6 km/h6 km/h6 km/hLiftingelectricelectricelectricelectricLifting speed0.14 m/s0.14 m/s0.14 m/s0.14 m/sLowering speed (with load)0.28 m/s0.28 m/s0.28 m/s0.28 m/sFork length1150 mm1150 mm1150 mm1150 mmMast height closed/extended (mm)2080-50202089-50292285-56352294-5644Fork width560 mm560 mm560 mm560 mmOverall dimensions1966x800 mm1966x800 mm1966x800 mm1966x800 mmTraction motor1.2 kW1.2 kW1.2 kW1.2 kWLifting motor3.2 kW3.2 kW3.2 kW3.2 kWStandard batterytraction battery 24V 225Ahtraction battery 24V 225Ahtraction battery 24V 225Ahtraction battery 24V 225AhWeight1190 Kg1223 Kg1229 Kg1262 KgMaximum gradient unloaded 10%Maximum gradient with load 5%Electromagnetic parking brakeService brake by current inversionOperating conditions 0° +40 °CThe load must be evenly distributed on the forks.As with all lifting equipment, attention must be paid to the safety diagram.Depending on the size and characteristics of the stacker, as the height or distance from the center of gravity increases, the capacity decreases.Residual capacityThe table represents ranges of residual capacity based on height.The customer must check the maximum height each model can reach.MODEL3300 mm3600 mm4000 mm4500 mm5000 mmFPLX 14/45 TR1400 Kg1200 Kg1000 Kg800 KgFPLX 14/45 TR FL1400 Kg1200 Kg1000 Kg800 KgFPLX 14/50 TR1400 Kg1200 Kg1000 Kg800 KgFPLX 14/50 TR FL1400 Kg1200 Kg1000 Kg800 KgBattery:The standard traction battery included with the trolley is 24V -225 Ah.It is possible to request the 24V - 300 Ah traction battery as an option, which involves an extra charge due to the change of battery and charger. This option is selectable only during the purchase of the trolley.OPTIONAL operator platform:The operator platform can be purchased as an option.COLORS AND FEATURESThe presented trolleys are of European production.They are high-quality models suitable for professional use.The color is not binding and may vary without notice, depending on availability at the time of order.Completely electric professional stackersCapacity: 1400 kgLifting height: from 4110 to 5025 mmAutonomy: up to 6 hoursElectric drive and liftingHigh maneuverability, reduced lateral footprint: 800 mmEasy battery maintenanceIntegrated control system with safety switch and battery indicatorErgonomic tillerOptional operator platformStandard battery: 24V 225Ah (option for 24V 300Ah)Electromagnetic parking brakeService brake by current inversionOperating temperature: 0° to +40°CCE certified
