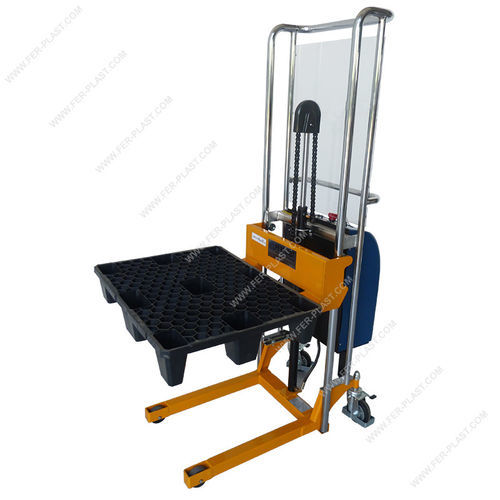

Sollevatore elettroidraulico FP PS 04 E series

a batteriamanualea forcella

Battery-powered lifter for boxes and reels FP PS 04 E - Capacity 400 kgManual push lifter with electro-hydraulic pump lifting, allows lifting loads (axle, bags, containers, mini-pallets, etc.) with a maximum weight of 400 kg up to a height of 1510 mm. The FP PS 04 E lifter is compact and easy to handle and is equipped with large diameter polyurethane wheels for high smoothness (two fixed and two swivel wheels with brake). Supplied with load forks with a length of 650 mm.The 12 V-80 Ah maintenance-free battery, combined with the robust motor and control electronics with overload protection, ensures safe and reliable operation. The battery charger is integrated.TECHNICAL FEATURESMOD. FP PS 04 ECapacityKg. 400Minimum height from floormm. 90Maximum lifting heightmm. 1510Fork lengthmm. 650External fork widthmm. 550Single fork widthmm. 105Internal fork widthmm. 340Load centermm. 325Lifting speedmm. 135 / sec.Descent speed12 sec.Battery12 V. – 80 Ah.Built-in battery charger220 V.Lifting motor powerKw. 0.8Machine dimensionsmm. 580 x 1090 x 1730 h.Frame height with wheelsmm. 80 (can be inserted under pallets)Fixed wheel diametermm. 75Swivel wheel diametermm. 125WeightKg. 127Lifter with forks.The load must be evenly distributed on the forks.As with all lifting devices, attention must be paid to the safety diagram.Depending on the size and characteristics of the lifter, as the height or distance from the center of gravity increases, the capacity decreases.These are very robust and mechanically simple products. It is rare for them to have any problems.If necessary, all spare parts are available in stock.All models are CE certified and are supplied with a specific use and maintenance manual.No specific license is required to use the lifter, but the operator must be trained and informed, and the instructions in the manual must be read and followed.OPTIONAL:ACC-PZ Galvanized steel platform: Galvanized steel platform insertable above the forks. Platform dimensions mm 580x650 - capacity 400 kg.ACC-PN-VRP Lowered V platform for reels - parallel: Allows lifting and horizontal transport of reels with max width 600 mm and max weight 100 kg - parallel to the direction of movement of the trolley.ACC-PN-V1/2 V platform for reels - parallel or perpendicular (choice): Allows lifting and horizontal transport of reels with max width 600 mm and max weight 150 kg - parallel or perpendicular to the direction of movement of the trolley.ACC-APF1 Fixed reel holder shaft: Diameter 50 mm and length 600 mm, allows gripping and horizontal transport of reels with max width 600 mm and max weight 150 kg. The fixed reel holder shaft is not an interchangeable accessory with the others available (e.g., V platform for reels). Choosing the fixed reel holder shaft, the lifter will be deprived of the two front forks and the metal platform.ACC-APF2 Fixed reel holder shaft + extended supports: Diameter 60 mm and length 1000 mm, allows gripping and horizontal transport of reels with max width 600 mm and max weight 100 kg. The fixed reel holder shaft is not an interchangeable accessory with the others available (e.g., V platform for reels). Choosing the fixed reel holder shaft, the lifter will be deprived of the two front forks and the metal platform. This modification includes the extension of the front supports of the trolley for safe use.ACC-PGN1 Pin with hook version 1: Pin with hook capacity 100 kg and maximum lifting height at the hook 1800 mm - maximum distance from the upright 600 mm. The pin with hook is not an interchangeable accessory with the others available (e.g., V platform for reels). Choosing the pin with hook with 100 kg capacity, the lifter will be deprived of the two front forks and the metal platform.ACC-PGN2 Pin with hook version 2: Pin with hook capacity 200 kg and maximum lifting height at the hook 1600 mm - maximum distance from the upright 450 mm. The pin with hook is not an interchangeable accessory with the others available (e.g., V platform for reels). Choosing the pin with hook with 200 kg capacity, the lifter will be deprived of the two front forks and the metal platform.Double fixed pin for reels: Double fixed pin for reels with maximum width of 600 mm. Ideal for lifting and loading reels inside machines. Maximum capacity 80 kg. The double fixed pin is not an interchangeable accessory with the others available (e.g., V platform for reels). Choosing the double fixed pin, the lifter will be deprived of the two front forks and the metal platform.Technical Specifications / Features:Model: FP PS 04 ECapacity: 400 kgMinimum height from floor: 90 mmMaximum lifting height: 1510 mmFork length: 650 mmExternal fork width: 550 mmSingle fork width: 105 mmInternal fork width: 340 mmLoad center: 325 mmLifting speed: 135 mm/secDescent speed: 12 secBattery: 12 V – 80 AhBuilt-in battery charger: 220 VLifting motor power: 0.8 kWMachine dimensions: 580 x 1090 x 1730 mm (h)Frame height with wheels: 80 mm (can be inserted under pallets)Fixed wheel diameter: 75 mmSwivel wheel diameter: 125 mmWeight: 127 kg
