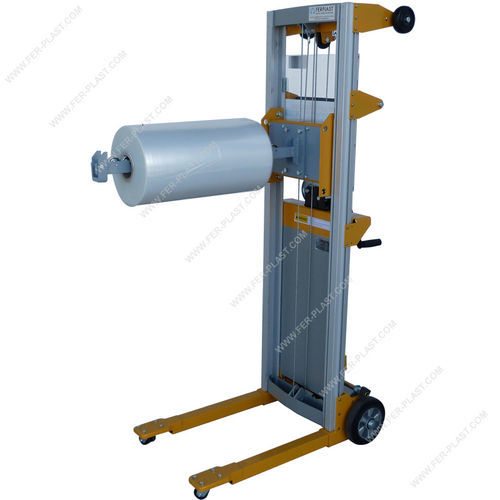

Ascensore automatico W181 B

Winch-operated lifter for reels with interchangeable accessoriesPractical and functional, it allows lifting reels up to 150 kg to a maximum height of 2600 mm when equipped with accessories (fixed pin, V-shaped platform, roller shaft, etc.).If equipped with forks and platform, it allows lifting up to 180 kg to a height of 2450 mm.The exclusive hand-crank winch allows the load to be lifted with minimal effort and, thanks to the built-in automatic clutch, the ascent can be stopped at any point during lifting. The load can only be lowered if the operator intentionally acts on the winch, causing a gradual descent.Equipped with multi-strand rope with textile core, horizontal push handles, foot-operated parking brake system, aluminum structure, and oven-cured epoxy powder coating.The lifter can be equipped with various accessories for lifting and transporting reels.TECHNICAL FEATURESMOD. W181 B for reelsMaximum capacityKg. 180Dimensionsmm. 630 (D) x 880 (C) x 1720 h.(A)Pin height (min/max)mm. 90 - 2450 (B/B1)Mast heightmm. 1720 - 3000Free heightmm. 1120Rear wheelsRubberFront wheelsNylonFront support widthmm. 620Total support widthmm. 510Internal support distancemm. 340Support height from groundmm. 85Weightkg. 70OPTIONAL• ACC-PB fixed reel holder L600Reel holder shaft with diameter 50 mm and length 600 mm, allows horizontal handling of reels with max width 600 mm and max weight 100 kg.• ACC-PB60-2 fixed reel holderReel holder shaft with diameter 76 mm and length 600 mm, allows horizontal handling of reels with max width 600 mm and max weight 150 kg.• ACC-PB10 reel holder pin with extended supportsFixed reel holder shaft with length 1000 mm and capacity 50 kg, allows horizontal handling of reels; extended supports to prevent front tipping of the lifter.• ACC-WP-A02 reel holder shaft with rollersIdeal for horizontal transport of reels with max width 500 mm, min internal diameter 76 mm, max external diameter 500 mm, max weight 150 kg.Minimum pick-up height about 30 cm (reel on pallet - if lower height is needed, specify when ordering).• ACC-WP-A02-2 Reel holder shaft with rollers and safety lock, length 600 mm and diameter 70 mm:Ideal for horizontal transport of reels with max width 500 mm, min internal diameter 76 mm, max external diameter 500 mm, max weight 100 kg.• ACC-WP-A03 for lifting and rotating reels:Allows gripping via a shaft and manual expansion with handwheel, and subsequent horizontal/vertical rotation via a release lever.Note: using this accessory reduces the lifting height by 200 mm.• ACC-FP forks with platformOptional forks with nylon loading platform, capacity 180 kg, max lifting height 2450 mm.Reel dimensions:- Internal diameter 76 mm- Max external diameter 500 mm- Max width 600 mm- Max weight 60 kgMaximum capacity: 180 kgDimensions: 630 x 880 x 1720 mmPin height (min/max): 90 - 2450 mmMast height: 1720 - 3000 mmFree height: 1120 mmRear wheels: RubberFront wheels: NylonFront support width: 620 mmTotal support width: 510 mmInternal support distance: 340 mmSupport height from ground: 85 mmWeight: 70 kg
