Misuratore di portata a pressione differenziale FMIPL-UTRM-01

per liquidiverticalein alluminio

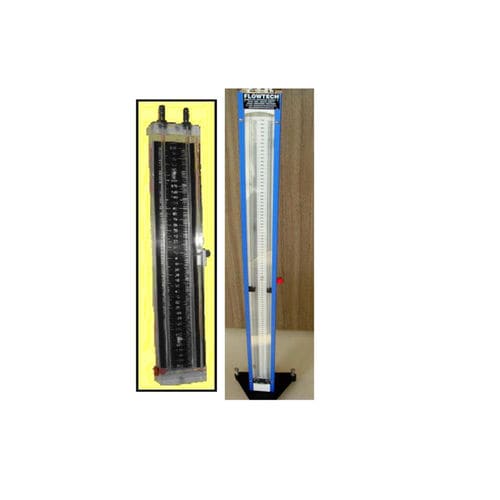

U-Tube Manometer Manufacturers, Supplier, Exporter, Trader, Dealer DESCRIPTION: “FLOWTECH” make U-Tube manometer is used for precision measurement of pressure, vacuum, differential pressure, and flow measurement in plants & labs where certain accuracy is required. MATERIALS OF CONSTRUCTION Metering Tube:: Special uniform bare thick-walled borosilicate glass tube Packing: Teflon / Neoprene Casing: M.S. /Aluminum Casing from three sides and aluminum cover with transparent acrylic front. Scale: Scale milky white PVC with Black Color Lining and figures Painting: Industrial Grade painted / Powder coated A U-Tube Manometer is a device in which a column of liquid is used for measuring pressure. The pressure is measured taking into consideration the difference between two liquid levels. “P.S” U-Tube Manometer are accurate, Simple, and economical instruments for measurement of positive pressure, negative pressure, differential pressure, vacuum, flow, etc. U-tube manometers indicate pressure as the vertical distance from the top of the fluid in one leg to the top of the fluid in the other leg. Manometers are available with wall mounting arrangement & stand mounting arrangement. Technical Specification: “U” Tube type Primary standard Manometer used for precision measurement of pressure, vacuum, differential pressure, and flow measurement in plants and labs where certain accuracy is required.
