Terminale telefonico PoE KNPA800mini

Ethernetper sistema di sonorizzazionecon spia luminosa

Product Name and Model

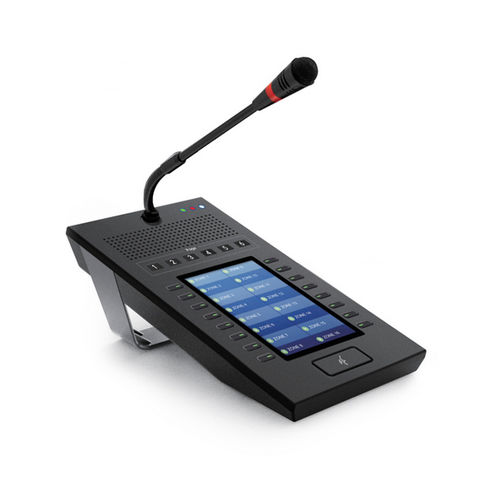

Paging Microphone - Model: KNPA800mini

Key Details

• Size: 150 (L) x 100 (W) x 76 (H) mm (excluding microphone)
• Material: ABS (Acrylonitrile Butadiene Styrene)

Features

• Purpose-Built Design: Exclusively engineered for professional PA applications
• Safety & Compliance: EN 54-16 and ISO 7240-16 certified; CE marked and RoHS compliant
• Continuous Operation: Designed for 24x7 operation with energy-saving standby features
• User-Friendly Interface: 16 (8*2) free-programmable buttons; 3.5-inch TFT display; clear status indicators for power and communication; push-to-talk activation with visual confirmation; one button with security cover for emergency function; equipment supports 96 DSS keys (16*6 pages)
• Time Sync: Integrated time-synchronization capability with GPS or local Observatory time servers
• Superior Audio Management: Professional gooseneck unidirectional microphone; adjustable microphone sensitivity and volume control; 3.5mm jack for wireless microphone input; software-configurable parametric equalization and limiting; built-in configurable chime generator (single-tone, 2-tone, 4-tone); high-quality audio with frequency response 100 Hz - 20 kHz and signal-to-noise ratio ≥ 60 dB
• Flexible Broadcasting Capabilities: Selective zone, group-zone and all-call paging; pre-recorded message distribution with zone targeting; live announcements; configurable emergency alert buzzer with adjustable volume; advanced scheduling for automated announcements (specific dates, daily/weekly/monthly repeats); priority-based audio routing with emergency override
• Enterprise-Grade Reliability: Power over Ethernet (PoE) operation; dual Ethernet ports for network redundancy; no external power supply required; supports remote monitoring with visual and aural output level indicators; extended connectivity with CAT5 up to 100m and Fiber+Pair up to 3km

Specification (visual/spec images on page)
Specification images provided on the product page illustrate detailed technical parameters (see product images).

System
System diagram image provided showing PA system paging integration and typical connectivity.

Application
Application images provided showing use scenarios for the Paging Microphone in PA systems.

Detailed Pictures
Multiple detailed product view images available on the page illustrating physical design and connectors.

PDF
Product PDF manual: KNPA800mini (available as downloadable PDF on the page).

Caractéristiques / Spécifications techniques

• Model: KNPA800mini
• Dimensions: 150 x 100 x 76 mm (L x W x H) excluding microphone
• Material: ABS
• Display: 3.5-inch TFT
• Programmable buttons: 16 (8*2)
• DSS keys support: 96 (16*6 pages)
• Audio frequency response: 100 Hz - 20 kHz
• Signal-to-noise ratio: ≥ 60 dB
• Microphone: Gooseneck unidirectional
• Inputs: 3.5mm jack for wireless microphone
• Chime generator: Single-tone, 2-tone, 4-tone
• Network: PoE support, dual Ethernet ports, CAT5 up to 100m, Fiber+Pair up to 3km
• Time sync: GPS or local Observatory time servers
• Compliance: EN 54-16, ISO 7240-16, CE, RoHS
