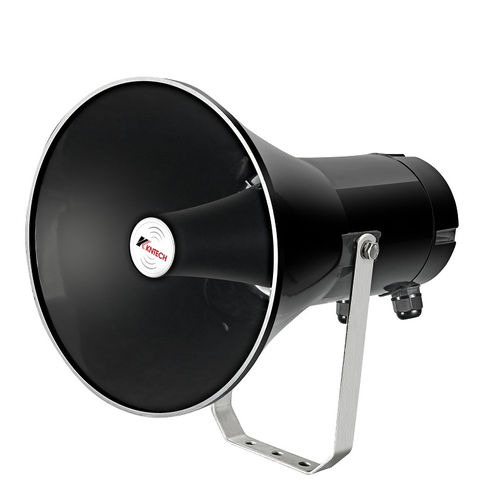

Altoparlante per area pericolosa KNSIPLB-Ex15

a tenuta stagnaATEXantideflagrante

Product Overview
KNSIPLB-Ex15 Network Speaker is an explosion-proof IP horn loudspeaker designed for clear long-range speech in video surveillance and public address applications. It enables remote voice announcements via network connectivity and integrates with SIP (VoIP) telephone systems. The unit includes a built-in amplifier, supports Power over Ethernet (PoE) and can play pre-recorded audio files or user-uploaded audio.
Key Features

• Explosion-proof speaker design certified by ATEX standard
• Material/Colour: Anti-static Polyamide / Black
• Waterproof and dust proof rating: IP66
• Service temperature range: -40 °C to +55 °C
• Provides high sound pressure level (exceeding 92 dB)
• Supports 360° lossless broadcast
• IP network horn speaker with PoE and built-in amplifier
• For use in public address and paging applications

ATEX & Marking
Explosion-proof design complying with ATEX; specific type and marking information provided on product documentation and marking plate.
Functionality
Enables an operator to remotely address people in live video monitoring situations and to deter unwanted activity; can be triggered manually or automatically to play pre-recorded audio in response to alarm events. Integrates with SIP/VoIP telephone systems for network-based announcements.
Product Size & Installation
Overall size listed as 413*254*277 mm. Installation dimension drawings and size diagrams provided for mounting and wiring details.
Packing Information
Unit size: 250 (∅) * 352 (L) mm
Unit G.W.: 3.7 kg
1 pcs in an inside box (box size: 270 x 270 x 390 mm, G.W.: 3.7 kg)
2 pcs in a CTN box (CTN box size: 570 x 290 x 420 mm, G.W.: 7.8 kg)
Applications
Suitable for hazardous and outdoor environments including petroleum, metallurgy, chemical industry, sea oil platforms, nuclear power, shipbuilding, tunnels and other projects requiring explosion-proof grade speakers.
Additional Notes
Type variations exist where appearance is the same but units may differ by having a built-in transformer or not. Frequency response charts and additional installation diagrams are provided in product documentation.
Caractéristiques / Spécifications techniques

• Model: KNSIPLB-Ex15
• Size: 413 x 254 x 277 mm
• Material: Anti-static Polyamide (Black)
• Ingress Protection: IP66 (waterproof & dust proof)
• Operating Temperature Range: -40 °C to +55 °C
• Sound Pressure Level: exceeds 92 dB
• Audio: supports pre-recorded audio files and user-uploaded audio
• Network: SIP (Session Initiation Protocol) compatible; integrates with VoIP telephone systems
• Power: Supports Power over Ethernet (PoE); built-in amplifier
• Broadcast: for 360° lossless broadcast; suitable for public address and paging
• ATEX: Explosion-proof design certified to ATEX standards (see marking)
• Packing & Weight: Unit G.W. 3.7 kg; inner box 270 x 270 x 390 mm (1 pcs); CTN 570 x 290 x 420 mm (2 pcs) G.W. 7.8 kg
• Type note: appearance identical across variants; some variants include a built-in transformer
