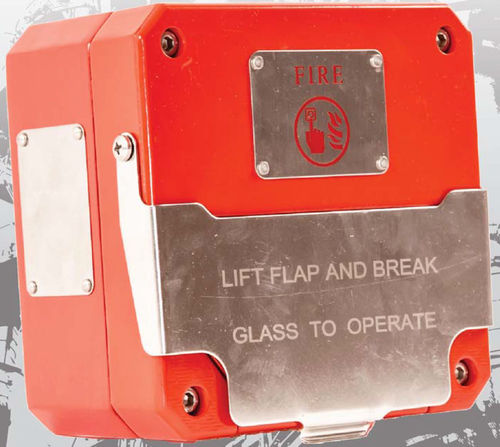

Punto di chiamata manuale ATEX KCP135

per applicazioni marineper applicazioni offshoreper l'industria petrolifera e di estrazione del gas

This manual call point “break glass” type is designed for corrosive environments and dedicated for the Oil & Gas, chemical, petrochemical, pharmacy industries, marine and offshore applications. The product is compatible with PLC, ESD, DCS systems via an output 4-20mA. The housing moulded in glass-reinforced polyester is dyed in the mass and protected with a UV resistant paint. Optionally: visualisa1ion functions, line detection, glass protection and hammer. Other accessories to customize the products are available. MATERIAL ENCLOSURE: Glass-reinforced polyester (GRP) COLOR: RED: RAL3001 – YELLOW**: RAL1018 – BLUE**: RAL5005 – BLACK**: RAL9004 – BLACK WITH YELLOW ZEBRA** IP RATING: IP66 AMBIENT TEMPERATURE: -40°C +70°C CERTIFICATES: ATEX – IECEX MARKING: II2GD Exd IIB+H2 T6 Gb Ex tb IIIC T85°C (Tamb = -40″C…+70°C) AMBIENT HUMIDITY*: UNTIL 95% WITH ICE RATE IMPULSE WITHSTAND VOLTAGE: lkV according to IEC 61000-4-5 CONTACT TYPE: 1 x C/O or 2 x C/O** CONVENTIONAL THERMAL COURANT (lth): AC 125/250V (50/60Hz)=11A*** ; 30V DC=6A*** ; 125V DC=0.3A*** MINIMUM VOLTAGE AND COURANT: DC 5V l0mA SHORTS CIRCUIT PROTECTION: lOA gG CABLE ENTRIES: 2xM20, M25**, l/2″NPT**, 3/4″NPT or other**(Specify) TERMINAL: From 22 to 14AWG – From 0.5mm2 to 2.5mm2 NET WEIGHT: 1.5kg LINE RESISTOR**: 470 Ohms SIGNALLING LED**: Green U=24V DC I= lOmA ; Red U=24V DC I= 20mA *=without runoff – **=optional – ***=resistive load – coble gland and blind plug not provided
