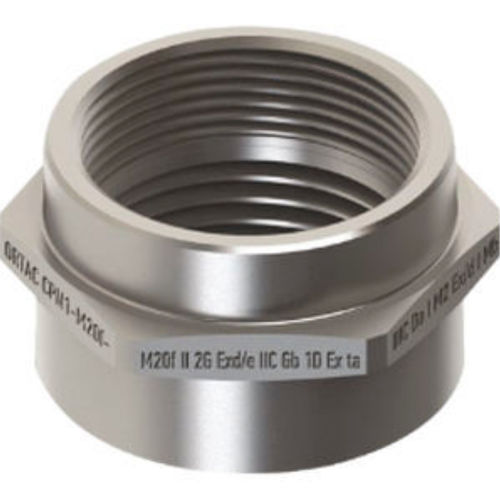

Rete tubiera di accoppiamento CPXX/N14f-M12f

NPTin acciaio inossidabiledi ottone

Prodotto
Tipo: CP TYPE COUPLING
Codice di protezione: I M2 Ex db I Mb / I M2 Ex eb I Mb II 2G Ex db IIC Gb II 2G Ex eb II Gb II 1D Ex ta IIIC Da
Certificato: IEP 15 ATEX 0333U
Materiali: Ottone, ottone nichelato, acciaio inossidabile
Standard (guarnizioni): NBR / Silicone
Range di temperatura: -40 °C a +100 °C
Classe di protezione: IP66-IP68
Area di impiego: ZONA1, ZONA2, ZONA21, ZONA22; Gruppi di gas IIA, IIB, IIC

Dati tecnici - SERIE NPT
NPT 1/4" — Code: CPXX/N14f-M12f — IG1: M12 x 1,5 — D: 9,5 mm — H: 33 mm — GL: 15 mm — GL1: 15 mm — SW: 18 mm
NPT 3/8" — Code: CPXX/N38f-M12f — IG1: M12 x 1,5 — D: 9,5 mm — H: 33 mm — GL: 15 mm — GL1: 15 mm — SW: 20 mm
NPT 3/8" — Code: CPXX/N38f-M16f — IG1: M16 x 1,5 — D: 12,5 mm — H: 33 mm — GL: 15 mm — GL1: 15 mm — SW: 20 mm
NPT 1/2" — Code: CPXX/N12f-M16f — IG1: M16 x 1,5 — D: 14 mm — H: 33 mm — GL: 15 mm — GL1: 15 mm — SW: 25 mm
NPT 1/2" — Code: CPXX/N12f-M20f — IG1: M20 x 1,5 — D: 16 mm — H: 33 mm — GL: 15 mm — GL1: 15 mm — SW: 25 mm
NPT 3/4" — Code: CPXX/N34f-M20f — IG1: M20 x 1,4 — D: 17 mm — H: 33 mm — GL: 15 mm — GL1: 15 mm — SW: 32 mm
NPT 3/4" — Code: CPXX/N34f-M25f — IG1: M20 x 1,5 — D: 22 mm — H: 33 mm — GL: 15 mm — GL1: 15 mm — SW: 32 mm
NPT 1" — Code: CPXX/N100f-M25f — IG1: M25 x 1,5 — D: 22,5 mm — H: 33 mm — GL: 15 mm — GL1: 15 mm — SW: 36 mm
NPT 1" — Code: CPXX/N100f-M32f — IG1: M25 x 1,5 — D: 28 mm — H: 33 mm — GL: 15 mm — GL1: 15 mm — SW: 36 mm
NPT 1 1/4" — Code: CPXX/N114f-M32f — IG1: M32 x 1,5 — D: 29 mm — H: 37 mm — GL: 15 mm — GL1: 18 mm — SW: 45 mm
NPT 1 1/4" — Code: CPXX/N114f-M40f — IG1: M32 x 1,5 — D: 35,5 mm — H: 39 mm — GL: 18 mm — GL1: 18 mm — SW: 45 mm
NPT 1 1/2" — Code: CPXX/N112f-M40f — IG1: M40 x 1,5 — D: 38 mm — H: 39 mm — GL: 18 mm — GL1: 18 mm — SW: 55 mm
NPT 1 1/2" — Code: CPXX/N112f-M50f — IG1: M40 x 1,5 — D: 42 mm — H: 39 mm — GL: 18 mm — GL1: 18 mm — SW: 55 mm
NPT 2" — Code: CPXX/N200f-M50f — IG1: M50 x 1,5 — D: 48 mm — H: 39 mm — GL: 18 mm — GL1: 18 mm — SW: 65 mm
NPT 2" — Code: CPXX/N200f-M63f — IG1: M50 x 1,5 — D: 54 mm — H: 39 mm — GL: 18 mm — GL1: 18 mm — SW: 70 mm
NPT 2 1/2" — Code: CPXX/N212f-M63f — IG1: M63 x 1,5 — D: 60 mm — H: 50 mm — GL: 18 mm — GL1: 18 mm — SW: 80 mm
NPT 2 1/2" — Code: CPXX/N212f-M75f — IG1: M63 x 1,5 — D: 64 mm — H: 50 mm — GL: 28 mm — GL1: 18 mm — SW: 80 mm
NPT 3" — Code: CPXX/N300f-M75f — IG1: M75 x 1,5 — D: 72 mm — H: 51 mm — GL: 28 mm — GL1: 18 mm — SW: 95 mm
NPT 3" — Code: CPXX/N300f-M90f — IG1: M75 x 1,5 — D: 79,5 mm — H: 53 mm — GL: 28 mm — GL1: 21 mm — SW: 95 mm
NPT 4" — Code: CPXX/N400f-M90f — IG1: M90 x 1,5 — D: 87 mm — H: 56 mm — GL: 28 mm — GL1: 21 mm — SW: 120 mm
NPT 4" — Code: CPXX/N400f-M110f — IG1: M110 x 1,5 — D: 105 mm — H: 56 mm — GL: 28 mm — GL1: 21 mm — SW: 120 mm

Documenti disponibili
Scheda tecnica (specifica del prodotto) — Disegni tecnici e documenti di codifica delle parti referenziati nella pagina prodotto.

Caratteristiche / specifiche tecniche

• Tipo: CP TYPE COUPLING
• Certificato: IEP 15 ATEX 0333U
• Materiali: Ottone; Ottone nichelato; Acciaio inossidabile
• Opzioni di tenuta: NBR o Silicone
• Temperatura di esercizio: -40 °C a +100 °C
• Grado di protezione: IP66 a IP68
• Codici di protezione e zone: I M2 Ex db I Mb / I M2 Ex eb I Mb; II 2G Ex db IIC Gb; II 2G Ex eb II Gb; II 1D Ex ta IIIC Da — Idoneo per ZONA1, ZONA2, ZONA21, ZONA22 (Gruppi di gas IIA, IIB, IIC)
• Disponibili più dimensioni NPT con codici prodotto e relative dimensioni (vedere le righe dei dati tecnici)
