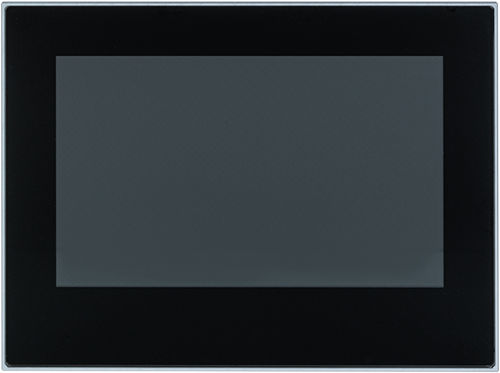

PMIvisu, terminale operatore e di diagnostica, 7", risoluzione 800 x 600Pixel, touchscreen capacitivo, TFT, RAM 4 GB, SSD 32 GB, 2 porte RJ45 1 Gbit/s, 1 host USB 3.0, 2 host USB 2.0, 1 porta HDMI, 1 porta VGA, real-time clock condensatore tampone, 12 ... 30 V DC, 23 W, OS Windows10 IOT, PASvisu Runtime installato e con licenza, software preinstallato: PMI v8 Assistant, PASvisu Server e Client, server PVISOPC UA, PSS 4000 Firmware (server OPC UA).
Dati generali
Omologazione - CE
UKCA
cULus Listed
EAC (Eurasia)
Sistema operativo - Windows 10 IOT
Dati tecnici
Dati elettrici
Tipo tensione alimentazione U1 - DC
Tensione di alimentazione (V) - 12 - 30 V
Potenza assorbita DC - 23 W
Monitor
Diagonale display - 7 Zoll
Risoluzione display - 800 x 480
Tipo display - TFT
Profondità colore display - 16,7 M
Tipo display touch - Capacitivo
CPU
Tipo del processore - X86
RAM - 4 GB
Dimens. memoria progr. (Flash) - 32 GB
Velocità del processore - 2,0 GHz
Real-time clock presente - Sì
Puerto USB
N. di interfacce host USB - 1 x USB 3.0
2 x USB 2.0
Tipo connett. interf. ETHERNET - RJ45
Velocità trasm. Ethernet - 1 Gbit/s
CANopen
N. interfacce Ethernet - 2
VGA
Interfaccia VGA esterna - 1 x HDMI
1 x VGA
Grado di protez. custodia -
Norma temp. magazzinaggio - EN 60068-2-1/-2
Temperatura ambiente - 0 - 50 °C
Grado protezione Norma - EN 60529
Acceler. shock sec. Norma 1 - 15g
EMC sec. norma .... - EN 61000-6-2
EN 55032 ed.2 classe B 2015
Vibrazioni sec. Norma ... - EN 60068-2-6
Condensazione ammessa - non consentito
Esposiz. a umidità sec. norma - EN 60068-2-78
Indicazione umidità - 0 ... 90 % a 39°C (n. cond.)
