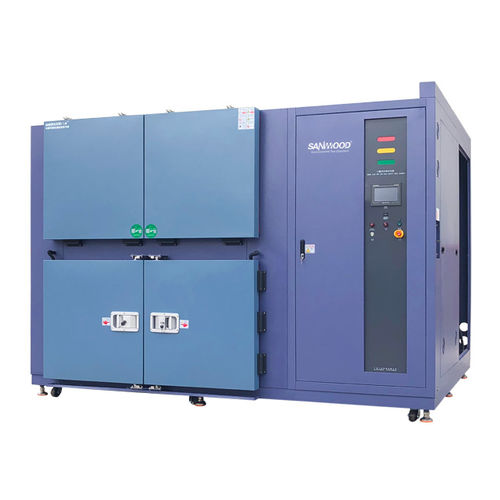

Camera per test per shock termico SM-150-3P-A
climaticadi temperaturaambientale

Camera per test per shock termico - SM-150-3P-A - Sanwood Technology - climatica / di temperatura / ambientale
Camera per test per shock termico - SM-150-3P-A - Sanwood Technology - climatica / di temperatura / ambientale
Aggiungi ai preferiti
Confronta con altri prodotti

Vuoi acquistare direttamente?
Vai sul nostro Shop.

Caratteristiche

Tipo
climatica
Parametro controllato
di temperatura
Tipo di test
ambientale, per shock termico
Uso previsto
per attrezzature elettriche, per batteria, per veicolo, per impianto elettronico
Campo di applicazione
per controllo di qualità
Configurazione
da terra
Sorgente luminosa
LED
Materiale
in acciaio inossidabile
Opzioni e accessori
con touch screen, controllata da PLC
Altre caratteristiche
a bassa temperatura, ad alte temperature, a risparmio energetico
Volume

150 l
(40 gal)

Temperatura

Min.: -55 °C
(-67 °F)

Max.: 150 °C
(302 °F)

Lunghezza interna

500 mm
(19,69 in)

Altezza interna

600 mm
(23,62 in)

Profondità interna

500 mm
(19,69 in)

Lunghezza esterna

1.550 mm
(61 in)

Altezza esterna

2.050 mm
(80,71 in)

Profondità esterna

2.050 mm
(80,71 in)

Descrizione

Thermal Shock Chamber -Product Feature: 1.Thermal Shock Test Chamber Modern design, latest modular creation technology ,perfect control power. 2.The Three-zone Thermal Shock Chamber will automatically defroste after it cycle for 700H or more 3.Patent design initiative observation window to achieve visual effects 4.Color screen 32 control system Ethernet E management, USB data access, APP mobile platform management 5.Programmable load power 4 ON/OFF output control, to protect the products safety 6.Unique air circulation system 7.Unique anti condensation function and over temperature, breezeless, smoke protection function 8.Three-zone Thermal Shock Chamber Can expand the network video monitoring function, and data test synchronization 9.The most environmentally friendly refrigeration capacity control, energy saving and fast rising/cooling temperature rate 10. Auto return to room temperature setting 11.Diagnostic system for information on operating times and possible failures. 12.The device can expand the remote service function and provide the machine using a mathematical disc.

VIDEO

Altri prodotti Sanwood Technology

Thermal shock test chamber
