Camera per test con lampada ad arco allo xeno

termostaticadi temperaturadi invecchiamento

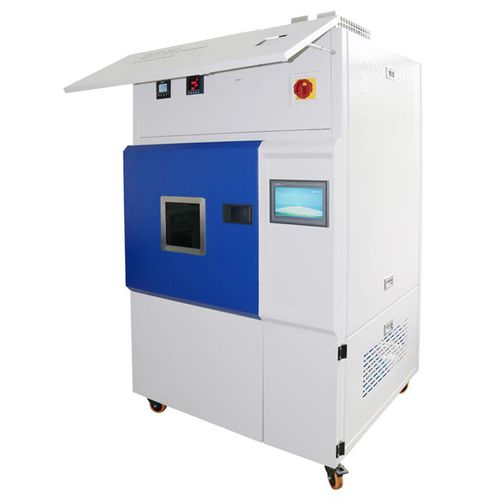

Xenon lamp weathering test chamber MainTechnical Parameters Ordering Information →SM- 862 Xenon lamp weathering test chamber Technical Item ↓ Xenon Lamp6.5 KW water cooling long arc xenon lamp Light FilterImport originally from ATLAS, can simulate indoor or outdoor sunshine spectrum Exposure Area6,500 cm2 Wave Length of Xenon Spectrum Can select 300-800nm（simulate sunshine，filtrate all wavelength under 300nm ）or 280-800nm （Add UV wave，keep some short-wave of UV） Adjustable Irradiance0.3～1.5 W/ m2 (Single point of control: 340nm) 0.5～2.7 W/ m2 (Single point of control: 420nm) 30 W/m2～150 W/ m2 (Full spectrum :from 300～400nm) Lifetime of lamps2,000 hours Adjustable BPTRT+20℃~110℃ Temperature Stability±1℃ Temperature Uniformity≤2℃ Temperature Declination≤±1℃ Adjustable HumidityLight：10%-85% Dark：10%-95% Rotate speed of sample1～7 r/min（circle as lamp centre） Spray FunctionCan set spray continuous time and spray period Water demandsHigh purity deionized water（Conductivity<2us/cm） Flow of Deionized Water0.2L/min Overall Size1,200*1,200*2,000mm（L*W*H） Weight850 KG Optional Pure Water MachineSize：620*650*1600（L*W*H） Weight：120KG Structure Cabinet MaterialWhole chamber is made up of good quality stainless steel （SUS304） Chamber DoorSimple door to left with filter window；silicon rubber seal the door edge Sample Crack Stainless steel material, its position in the chamber can be adjusted（up, middle or down） , Sample crack rotate around the centre of lamp
