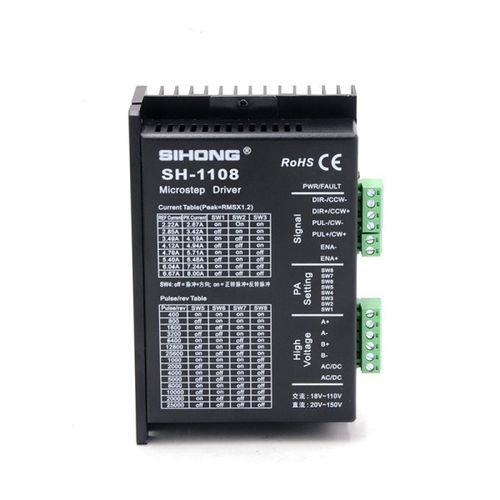

Comando di motore SH-1108

Input Voltage: 18-1100VACMaximum Current: 8.0AResolution: 0.1ASubdivision Range: 400-51200Difference/Single-end, Pulse/Direction or Double-pulse impulse response frequency: 200KHZOn-power parameter automatic setting functionPrecision current control greatly reduces motor heating.Product Details:1. Electrical IndexA. Control Signal InterfaceB. High Voltage Interface2. Dial the Code SetThe SH-1108 driver adopts the eight-bit dial code switch to set the subdivision precision, dynamic current, static half current, as well as achieve the self-setting of motor parameters and internal adjustment parameters.Detailed description is as follows:1) Working (dynamic) current settingDial 4, OFF = pulse plus direction mode, ON = double pulse input mode2. Control Signal Mode SettingSH-1108 driver signal mode is set by three jumpers on the PCB board.3. Controller Wiring Diagram4. Installation DimensionTechnical Specifications:Input Voltage: 18-1100VACMaximum Current: 8.0AResolution: 0.1ASubdivision Range: 400-51200Difference/Single-end, Pulse/Direction or Double-pulse impulse response frequency: 200KHZAutomatic parameter setting on power-upPrecision current control for reduced motor heatingEight-bit dial code switch for subdivision and current settingsSignal mode set by PCB jumpers
