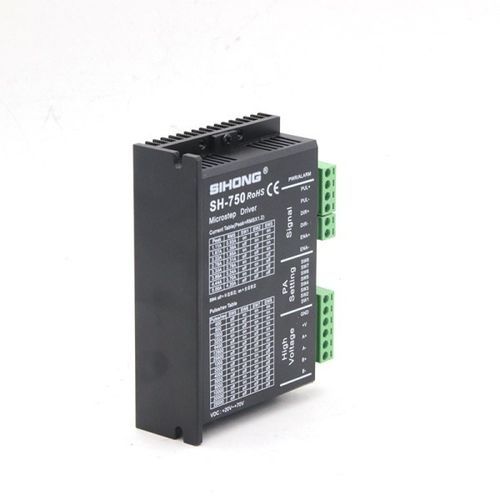

Comando di motore passo-passo a 2 fasi SH-750

Drive 4-wire, 8-wire two-phase stepper motor.Voltage input range: 18~70 VDCCurrent maximum: 5.0A, resolution: 0.1ASubdivision range: 400~25600pprSignal input: differential/single end, pulse/direction or double pulse, 5-24VDC level compatiblePulse response frequency: 200KHzAutomatic setting of power on parametersPrecision current control reduces the heating of the motorProduct Details1. Electrical index2. Interface definitionUN: Power interface3. Dial code settingThe SH-750 driver adopts an 8-bit dial code switch to set subdivision, running current, and static half current. Detailed description is as follows:1) Operating current setting2) Segmentation3) Setting of control signal mode4) SH-750 driver signal mode is set by 3 jumpers of PCB board4. Use environment and parameters5. Controller electrical schematic6. Installation dimensionsTechnical SpecificationsDrive type: 4-wire, 8-wire two-phase stepper motorVoltage input range: 18~70 VDCMaximum current: 5.0ACurrent resolution: 0.1ASubdivision range: 400~25600pprSignal input: differential/single end, pulse/direction or double pulse, 5-24VDC compatiblePulse response frequency: 200KHzAutomatic parameter setting at power onPrecision current control to reduce motor heating
