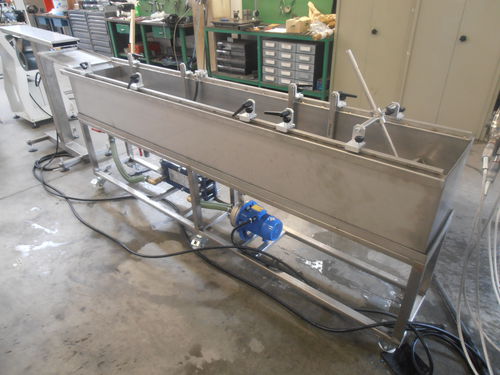

Vasca di raffreddamento in acciaio inossidabile VRS
per tubiper estrusioneper profilati

vasca di raffreddamento in acciaio inossidabile
vasca di raffreddamento in acciaio inossidabile
Aggiungi ai preferiti
Confronta con altri prodotti


Caratteristiche

Specificazioni
per tubi, in acciaio inossidabile, per estrusione, per profilati

Descrizione

Triple revolution tank Immersion cooling system used to cool plasticized PVC gaskets and tubing without calibration and vacuum. The tank can be 4 or 5 metres long, made of stainless steel plate on a solid structure. The wheels on the base make it easy to move. The tank has a compensation tank on the bearing structure and a recycle pump. In order to improve the cooling operations, based on the size of the product, a system of rollers allows the triple revolution and there is a series of supports to keep the profile submerged. An air blower can be installed at the tank outlet for drying and eliminating water from the product. Calibration and cooling tank BCV model cooling tank for cooling HDPE piping and small boxes with a thickness of about 0.5 mm. The stainless steel tank has a vacuum area inside of which the tubing calibration occurs. In the second part, the product is cooled by being submerged in water. Motorized tank Innovative cooling system for tubes and profiles up to 40mm in diameter. This type of solution is particularly suited for resolving cooling and space issues. The profile housed in the conveyor belt is cooled in the upper part by a nebulized water system through a series of valves located along the length of the tank and is then conducted in the lower part where it is further cooled through a classic immersion system. The belt is moved by being mounted between two pulleys, one motorized and one idle. The 500mm diameter of the pulleys prevents any pulling or deformation of the product. The operator panel is located at the beginning of the tank. The stainless steel tank is mounted on a structure with swivel wheels for moving it.

Cataloghi

Nessun catalogo è disponibile per questo prodotto.

Vedi tutti i cataloghi di Teknomast Srl
