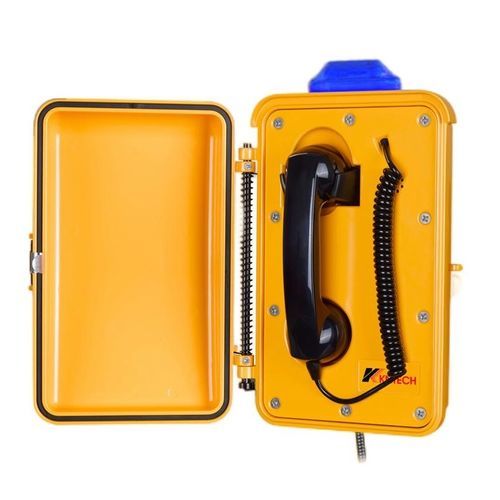

Telefono analogico KNSP-03-D23

IPPoELAN

Produit
Model: KNSP-03-D23
Size: 320*205*120mm
Material: Aluminum alloy

Features

• Robust aluminium alloy die-cast body, vandal & tamper-resistant hardware.
• Waterproof rating IP66, dust proof.
• With line powered blue indication lamp.
• Noise canceling microphone. Automatically filters out train/car noise for clearer call quality. Without keypad, support hotline setting and support scroll dialing.
• Magnetic reed hook-switch.
• DC input overvoltage and overcurrent protection and RJ45 surge protection.
• Heavy duty handset with hearing aid compatible (HAC) receiver.
• Handset with industrial strong curly cord.
• Door cover: orients automatically and has good self-closing, convenient for use.
• Operating temperature range from -40°C to +70°C.
• Support echo cancellation.
• Support remote software upgrade, configuration and monitoring.
• Powder coated in UV stabilized polyester finish.
• Application: tunnel, metro, railway, LRT, speedway, marine, ship, offshore, mine, power plant, bridge, etc.

Order information
Model number | Power Supply | Item Number
KNSP-03-IP-Y_AD | DC12V 1A | SP0030052
KNSP-03-IP-Y_P | POE | SP0030022
KNSP-03-IP-Y_ADP | DC12V 1A + POE | SP0030092

Certifications
Australian communications: AS/CA S004
Australian Equipment-safety: AS/NZS 60950.1:2015
RCM: AS/NZS CISPR 32
EMC: EN55032, EN55024, EN61000-3-2

Installation
Dimension drawing and installation illustrations provided for unit size 320*205*120mm.

Packaging
Unit size: 320 *205 *120mm. Unit N.W: 4.86 KG
1 pcs packing box size: 439 *277 *191mm. N.W: 5.8 KG
6 pcs in 1 outer carton box: size: 730 *390 *340mm. N.W: 36.5 KG

Detailed pictures
Multiple product and application pictures available showing multi-angle views, blue warning light and installations in tunnels and industrial environments.

Caractéristiques / spécifications techniques

• VoIP SIP 2.0 telephone.
• DTMF dialing (max length of each number: 32 digits).
• Audio codes: G.711, G.723, G.726, G.729.
• MTBF: 100,000 hours. MTTR: 2 hours.
• Network: 10/100 BaseTX Ethernet, RJ45 (Cat5e or better).
• Communication: full duplex 2-way.
• IP Protocols: IPv4, TCP, UDP, RTP, DHCP, SIP.
• Call control signaling: SIP Info (DTMF), RFC 2833 (DTMF).
• 1 x LAN with Power over Ethernet (PoE, IEEE 802.3af).
• 1 x LAN (IEEE 802.1x), Network Access.
• Power: Power over Ethernet IEEE802.3af, Class 0; local power 12V DC, idle 2W, max 10W.
• Control: IEEE 802.1x, STP (IEEE 802.1d), RSTP (IEEE 802.1d-2004).
• Auxiliary contacts: optional.
• Programming: non-volatile flash memory; programming and configuration through Web GUI.
• 1 Aux Output: dry contact (rated load: 0.3 A at 125 VAC; 1 A at 30 VDC). Rated carry current: 1A.
• Remote automatic software upgrade and centralized monitoring.
• Max switching voltage: 125 VAC, 30 VDC. Max switching current: 1A.
• Echo cancellation: ITU-T G.167 / G.168.
