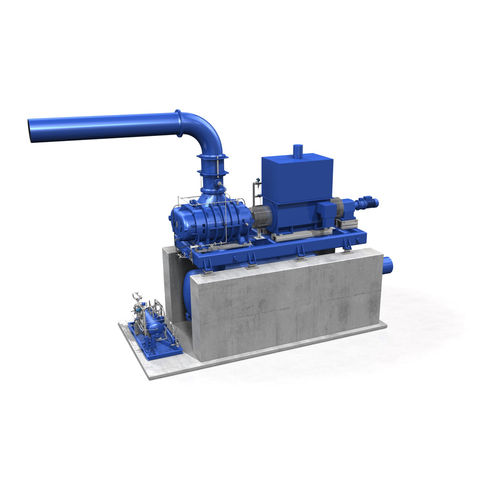

Soffiante di gas GR

a girantemonostadiobistadio

La potenza dei soffiatori per applicazioni speciali. I soffiatori per gas di processo GR a singolo o doppio stadio possono essere utilizzati per la maggior parte dei gas e delle miscele di gas, anche aggressivi. In tutti i rami dell'industria. Sono inoltre ideali per gas con temperature di aspirazione fino a -30 °C. DESIGN: The conveying chamber sealed by a) pressure relieved soft packings with purge gas connections, b) pressure relieved carbon ring - labyrinth seals with purge gas connections, c) double-acting mechanical seals, oil-purged d) double-acting mechanical seals, water-purged Drive shaft by radial seal ring. DIRECTION OF FLOW: Vertical, from top to bottom. DRIVE: Direct via flexible coupling or via flexibly coupled spur gear. Overhung via narrow v-belt (up to 250 kW driving power). Special materials: Depending on the particular operating conditions, models are also available in CrNi cast steel or with different coatings. MEDIUM: air oxygen neutral, toxic, flammable, explosive, corrosive or mixed gases
