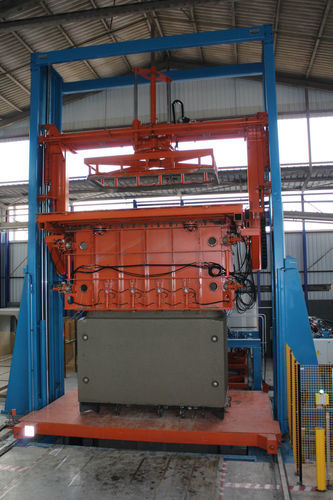

Macchina per la produzione per prodotti in calcestruzzo Vibromax

automaticoper cantiere di costruzione

Completely automatic machine for the production by vibrocompression, with direct demoulding, of products with heights from 1000 mm to 3000 mm, particularly suitable for large-sized products.Presentation:Completely automatic machine for the production by vibrocompression, with direct demoulding of a wide variety of concrete products. It is particularly suitable for the automatic production of large-sized products. Depending on the model, the machine can produce products with diameters from 300 mm up to 3000 mm (box culverts up to 3000 mm x 3000 mm), with variable heights from 250 mm to 3000 mm, in single mode (multiple production is also available on request).Technical Features:The machine can be equipped with a hydraulic quick mold change system, simple and fast to use, allowing daily mold changes in less than 1.5 hours (no further adjustment of cores, external molds, and pressers is required after production change).The concrete feeding is fully automatic: the feeder belt is combined with a special epicyclic spreader, with 4 orbiting elements, which distributes the concrete in a minimum time even to the most peripheral points; this solution is particularly effective in the production of box culverts and large-sized products.Other features make Vibromax an extremely functional plant: mechanical and electronic vibration adjustment via inverter, inspectable loading bucket for cleaning operations, automatic ejection of products at the end of the cycle via motorized trolley, with possible subsequent handling and storage.The system can be integrated with automatic feeding of bases (performed frontally) and/or with cleaning and oiling of bases, insertion of gaskets, automatic overhead handling. These options further speed up the production cycle, reducing the required personnel.The general management and control of the machine is performed via PC with Vicom system, with synoptic panels for machine status and anomalies control, complete with remote assistance modules, with the possibility of remote production management (Industry 4.0).Products that can be made:Circular pipesCircular pipes with laying planeNon-reinforced pipesReinforced pipes with rigid reinforcementReinforced pipes with fibersDrainage pipesJacking pipesMale-male joint pipesBox and ovoid pipesManhole basesExtensions and terminal conesMonolithic cones for manholesFlat coversHeight adjusters for manholesPipes with branchesRoad drain manholesDrainage channelsSpecial products in general, to be made specifically on customer request, with any type of jointAdvantages:High productionFlexibility (a wide range of products can be made; ideal machine for automatic production of large-sized products)Reduced personnel requiredHigh product quality guaranteed by automatic electronic vibration adjustment (with internal mold vibrator) and concrete feedingVery fast mold change (reduced times allow mold change, in the same day, for a possible second work shift), without the need for mold adjustment after the changeComplete machine control via PC with Vicom system, with the possibility of remote production management (Industry 4.0)Technical Specifications:Production height: 1000 mm to 3000 mmProduct diameter: 300 mm to 3000 mm (box culverts up to 3000 mm x 3000 mm)Automatic concrete feeding and distributionHydraulic quick mold change systemMechanical and electronic vibration adjustmentPC-based control with remote management capabilities
