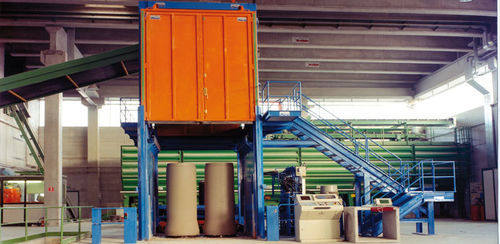

Macchina per la produzione per canalizzazioni in calcestruzzo Bimatic series

automaticoper cantiere di costruzione

Completely automatic machine for above-ground production by vibrocompression, with direct demolding of products with heights from 2000 mm to 3000 mm.PresentationCompletely automatic machine for the vibrocompression production of concrete pipes, with direct demolding. Bimatic operates above ground and is equipped with a soundproofing system; it uses the technology of movable cores, for the entire length of the product, with a head complete with a rotary spreader for concrete distribution. The machine can produce, depending on the various models, products with diameters from 300 mm to 1600 mm and heights from 2000 mm to 3000 mm, thanks to the mobile product holder plate that allows supporting the base at any height, while ensuring the seal on the external mold. Production can be single, double, or triple, with the possibility of mixed productions.Technical FeaturesThe machine is equipped with a hydraulic quick-change system for molds, simple and fast to use, allowing daily quick changes of molds in less than 1.5 hours (no longer requiring adjustment of cores, external molds, and pressers after production change).There is a system for precise management of product height, within a given tolerance.The concrete feeding is fully automatic: the feeder belts, with independent drive, supply concrete to the central point of each mold, always calibrating the right amount, in sync with the rotary spreaders mounted on the heads of the internal cores: this maximizes filling speed and ensures compaction quality, and also facilitates multiple productions of two or three products of different diameters.Other features make Bimatic an extremely functional plant: the internal pipe surface smoothing system, mechanical and electronic vibration adjustment via inverter, and an inspectable loading bucket for cleaning operations.The system can be integrated with automatic base feeding (performed from the rear) and/or with base cleaning and oiling, gasket insertion, and automatic overhead handling. These options further speed up the production cycle, reducing the necessary personnel.The general management and control of the machine is performed via Vicom PC system, with synoptic panels for machine status and anomalies control, complete with remote assistance modules, with the possibility of remote production management (Industry 4.0).Products that can be made:Circular pipesCircular pipes with laying baseNon-reinforced pipesReinforced pipes with rigid reinforcementReinforced pipes with fibersDrainage pipesMale-male joint pipesThrust pipesProducts that can be made with any type of jointAdvantagesHigh productionReduced required personnelHigh product quality guaranteed by automatic electronic vibration adjustment (with internal mold vibrator) and concrete feeding, with rising core technology, with built-in spreaderOptimal independent management for mixed productionsVery fast mold change (reduced times allow mold change, in the same day, for a possible second work shift), without the need for mold adjustment after the changeComplete machine control via Vicom PC system, with the possibility of remote production management (Industry 4.0)Technical SheetMachinePipes Diameter (cm)Pipes Length (cm)BIMATIC 30/12030 – 120H 200 – 250 – 300BIMATIC 30/16030 – 160H 200 – 250 – 300MachineD 300D 400D 500D 600D 700D 800D 900D 1000D 1200D 1400D 1600BIMATIC 30/120 N222211111--BIMATIC 30/120 T333222111--BIMATIC 30/160 N22221111111BIMATIC 30/160 T33322211111Completely automatic above-ground vibrocompression machineDirect demoldingProduction heights: 2000 mm to 3000 mmProduct diameters: 300 mm to 1600 mmSingle, double, or triple production modesHydraulic quick-change system for moldsAutomatic concrete feedingInternal pipe surface smoothing systemMechanical and electronic vibration adjustmentPC-based control with remote management (Industry 4.0)
