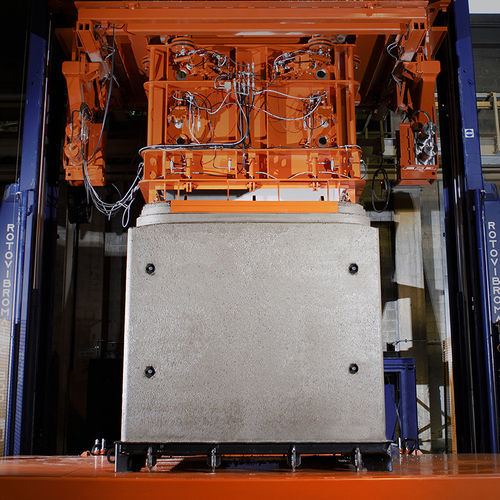

Macchina per la produzione per prodotti in calcestruzzo Rotovibromatic

automaticoper cantiere di costruzione

Completely automatic machine for vibro-compression production, with direct and overturning demolding, for manufacturing products h1000-3000, particularly suitable for large-sized products.Product Presentation:Completely automatic machine for vibro-compression production, with both direct and overturning demolding, for a wide variety of concrete products; Rotovibromatic is particularly suitable for the automatic production of large-sized products, with or without monolithic bottom, even with special geometries.The machine can produce, depending on the model, products up to d3000 mm, or up to 3000×3000 mm, with a variable height from 250 mm to 3000 mm, in single mode (multiple production is also available on request). The type of vibration can be chosen according to needs (vibrating column with hydraulic locking/unlocking of the mold at each cycle, or vibrating table with hydraulic mold locking frame, or standard internal vibrator).Technical Features:Equipped with a bottom pressing system to ensure greater compaction and sealing.Can be equipped with a hydraulic quick mold change system, allowing daily quick changes in less than 1.5 hours (no need to adjust cores, external molds, and pressers after production change).Fully automatic concrete feeding: the feeder belt is combined with a special epicyclic spreader with 4 orbiting elements, distributing concrete even to the most peripheral points in minimal time. This is especially effective for the production of box culverts and large rectangular tanks.Other features: mechanical and electronic vibration adjustment via inverter, inspectable loading bucket for cleaning, automatic product ejection at the end of the cycle via motorized trolley, with possible subsequent handling and storage.The system can be integrated with automatic feeding of base pallets (flat bottoms) for overturning production, or standard bottoms for direct demolding, which will be performed frontally and/or with cleaning and oiling of the bottoms, insertion of gaskets, automatic overhead handling. These options further speed up the production cycle, reducing the necessary personnel.General management and control of the machine is performed via Vicom PC system, with synoptics for machine status and anomalies, complete with remote assistance modules, with the possibility of remote production management (Industry 4.0).The performance of the Rotovibromatic makes it a unique machine in its category; the result of study, research, and technology.Products that can be made:Tanks (circular, box, or elliptical), with or without sedimentation chambers, for oil separation, water containment, purificationCircular pipesCircular pipes with laying planeUnreinforced pipesReinforced pipes with rigid reinforcementReinforced pipes with fibersDrainage pipesMale-male joint pipesBox and ovoid pipesThrust pipesManhole basesExtensions and terminal conesMonolithic cones for manholesFlat slabs and coversHeight adjustment for manholes, pipes with branches, manholes for road drains, drainage channelsSpecial products in general, made to customer specifications, with any type of jointAdvantages:High production: Rotovibromatic allows quadrupling the productivity of exceptionally sized concrete productsFlexibility (a wide range of products can be made)Drastic reduction in labor hours, with reduced personnel requiredHigh product quality guaranteed by automatic electronic vibration adjustment (with internal mold vibrator) and concrete feedingVery fast mold change: only 15 minutes required with the patented Colle S.p.A. system (reduced times allow mold change within the same day for a possible second work shift), without the need to adjust the mold after the changeComplete machine control via Vicom PC system, with remote production management and control (Industry 4.0), with any type of deviceGuaranteed operator support via real-time remote assistanceTechnical Specifications / Features:Automatic vibro-compression productionDirect and overturning demoldingProduction of products h1000-3000 mmSuitable for large-sized productsProduction up to d3000 mm or 3000×3000 mmHeight from 250 mm to 3000 mmSingle or multiple production modeChoice of vibration type (vibrating column, vibrating table, internal vibrator)Hydraulic quick mold change systemAutomatic concrete feeding with epicyclic spreaderMechanical/electronic vibration adjustment via inverterAutomatic product ejection and handlingAutomatic pallet feeding and cleaning/oilingRemote management and teleassistance (Industry 4.0)
