Terminale telefonico analogico KNZD-13

VoIPPoEEthernet

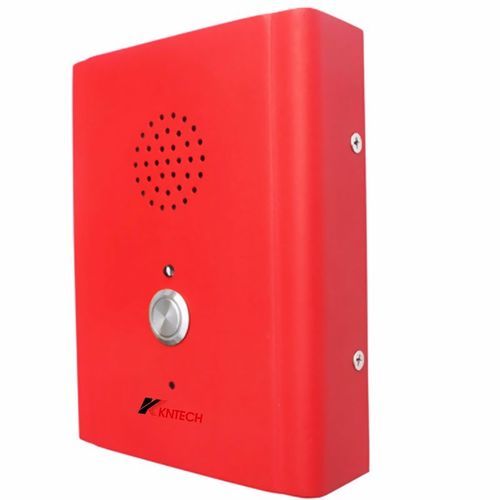

ADA Elevator Phone is an emergency call device designed for elevators, available in both analogue and VoIP versions and fully ADA compliant; customizable to specific installation needs.

Key features

• Cold-roll steel body for easy installation.
• Waterproof and dust-proof design (IP55 rating for standard units).
• Full keypad with memory: 10-button programmable speed-dial telephone.
• Weather resistant: service temperature range from -30°C to +75°C.
• Lightning protection following ITU-T recommendation K.21.
• Heavy-duty handset with hearing-aid compatible receiver and noise-canceling microphone.
• Handset fitted with industrial-strength armored cord.
• Metal keypad that remains waterproof and dust-proof.
• Phone integrity wiring to enable system supervision (if PABX supports this function).
• Optional 7-minute timeout to release the line if handset is left off-hook (available upon buyer's requirement).
• Powder-coated UV-stabilized polyester finish.
• Optional reflective label on housing for easy identification at night.
• Applications include tunnels, metro, railway, LRT, speedway, marine/ship/offshore, mines, power plants, bridges, etc.

How to use the elevator emergency button

• One-touch dial: press the emergency call button to automatically connect to the specified phone number.
• Incoming call flashing reminder: an LED indicator above the button flashes when there is an incoming call.
• Automatic connection: when the specified number of rings is reached (user-settable), the phone automatically connects and allows the caller to speak.
• Automatic hang-up: the unit can detect busy tone and automatically hang up when the caller disconnects to avoid line blocking.

Application / Installation notes

• Designed for installation in elevators and other emergency-call scenarios (metro, railway, tunnels, marine, offshore, mines, power facilities, bridges, etc.).
• Unit dimensions and mounting drawings provided in product images.

Caractéristiques / Spécifications techniques

• General: Size 170 × 130 × 40 mm; Material: cold-roll steel sheets; Unit net weight: 1.5 kg.
• Ingress Protection: IP55 standard for described unit (page also references GB4208-93 IP66 for certain certifications/variants).
• Finish: Powder coated with UV-stabilized polyester; optional reflective label for night identification.
• PSTN Analogue (SPECIFICATION-Analogue NO.ZD0130012): PSTN analogue telephone; DTMF dialing; MTBF: 100,000 hours; MTTR: 2 hours; connection via RJ11 screw terminal pair cable (or RJ11 socket/plug on request) with stainless steel cable protection; ringing level > 70 dB(A); call transmission index and maximum distance details included (max. distance ~7 km); supports up to 12 groups of stored speed-dial numbers (max 16 digits each); ambient temperature -30 ~ +60°C; relative humidity 10%–95%; atmosphere pressure 86–106 KPa; operating noise < 60 dB(A).
• VoIP (SPECIFICATION-VoIP NO.ZD0130022): VoIP SIP 2.0 telephone; DTMF dialing; MTBF: 100,000 hours; MTTR: 2 hours; 1 auxiliary dry contact output (rated loads and switching current/voltage specified); echo cancellation G.167/G.168; audio codecs G.711, G.722, G.729; IP protocols IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP; full duplex 2-way hands-free communication; call control via SIP Info (DTMF) and RFC 2833; network: 10/100Base-TX Ethernet, RJ45; power: PoE IEEE802.3af Class 0 and local 12 VDC (idle 2 W, max 10 W); programming via non-volatile flash and Web GUI; management supports DHCP/static IP, remote automatic software upgrade, centralized monitoring and status LED; LAN protocols include PoE, 802.1x, STP/RSTP.
• Certifications & EMC: EN55022 (emissions), EN55024 (immunity), EN50121 (railway EMC), GB4208-93 IP66 reference, FCC, ITU-T Recommendation K.21 lightning protection.
• Packaging: Unit size 170 × 130 × 40 mm, N.W. 1.5 kg; 1 pc packing box size 310 × 240 × 130 mm (N.W.1.5 kg, G.W.3.2 kg); 16 pcs per outer carton (outer carton size and gross/net weights provided).
