Terminale telefonico IP KNPA800miniR

PoEEthernet4,3"

Overview

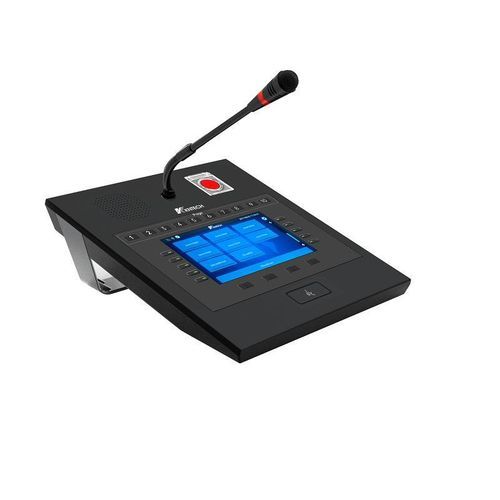

PA CALL STATION / PAGING MICROPHONE. Model: KNPA800miniR. 100-zone one-touch paging with a covered red emergency key. With gooseneck unidirectional microphone.

Key Functional Features & Benefits

• Purpose-built design for professional PA applications, optimized for performance and longevity in demanding environments.
• Certified for safety: EN 54-16 and ISO 7240-16 compliance for life safety and voice evacuation systems.
• 24/7 operational readiness with intelligent energy-saving standby features.
• User-centric interface: vibrant 4.3-inch TFT for clear, responsive operation.
• Effortless zone & group selection: individual zones, predefined groups, or all-call broadcast via the display and controls.
• At-a-glance status confirmation: visual indicators for power, communication status, and push-to-talk activation.
• Superior audio management: professional gooseneck unidirectional microphone, adjustable microphone sensitivity, volume control, and software-configurable parametric equalization.
• 3.5mm jack for external/wireless microphone input for flexible audio source integration.
• Flexible broadcasting: selective zone, group-zone, and all-call paging; scheduled and pre-recorded announcements supported.
• Priority audio routing ensures emergency announcements override lower-priority audio.
• Enterprise-grade reliability: Power over Ethernet (PoE) operation and dual Ethernet ports for network redundancy.
• Secure and encrypted communication using AES67 for audio and AES70 for control.

Specification Highlights

• Built-in chime tone: configurable prior to live paging announcements.
• Concurrent live paging: supports simultaneous paging from multiple stations to non-overlapping zones.
• Zone conflict handling: predefined priority/occupancy policies (override/queue/restriction) for overlapping requests.
• BGM & live paging mixing (ducking): background music attenuation during paging.
• Zone-based paging with flexible selection and quick operations.

More powerful features

• Product positioning: professional IP Network Paging Console for PAGA/PA systems for safe-area control rooms and operation centers.
• One-touch emergency paging: covered red emergency key with anti-misoperation protection; manual alarm/emergency paging functions for General Alarm / Gas Alarm / All Clear.
• Gooseneck microphone with PTT (momentary, non-locking).
• 4.3" TFT color display for zone selection, call status and fault indication.
• System monitoring: power/communication/fault indication with fault acknowledge support.
• Anti-misoperation protection: emergency key flip cover; configurable press-and-hold or confirmation pop-up; user privilege control for authorized operations only.
• Mounting options: Desktop / Wall Mount / Flush (Panel) Mounting. Cut-out dimensions and mounting brackets available as optional.
• IP Rating: Front panel protection IP22 (minimum) for indoor control room environment.
• Cybersecurity support (IEC 62443 requirements): configurable user privileges, password policies, minimize enabled ports/services; integration with PAGA controller for encrypted control.
• Area of use: designed for Safe Area control room applications; for hazardous areas use IECEx/ATEX certified field paging stations as required.
• Alarm indications: local and external alarm indication on 4.3" TFT with acknowledge/mute support; external alarms via PAGA Controller/Server integration.

System & Application
Designed to integrate into IP networked PAGA/PA systems. Provides system diagrams, mounting and application illustrations for control-room deployments and broader PA system architectures.

caractéristiques / spécifications techniques

• Modèle: KNPA800miniR
• Taille (principal): 213 (L) x 190 (W) x 76 (H) mm (excluding microphone)
• Matériau: ABS (Acrylonitrile Butadiene Styrene)
• Certifications: EN 54-16, ISO 7240-16
• Display: 4.3" TFT color display for zone selection, call status and fault indication
• Microphone: Gooseneck unidirectional microphone with PTT (momentary, non-locking)
• Paging keys: 100-key paging console (10 pages × 10 physical paging buttons), 4 function keys, one main paging key and a red emergency key under safety cover
• Audio inputs: 3.5mm jack for external/wireless microphone input
• Power & networking: Power over Ethernet (PoE) support; dual Ethernet ports for network redundancy
• Audio/security standards: AES67 for audio, AES70 for control; cybersecurity support aligned with IEC 62443
• IP Rating: Front panel IP22 (minimum) for indoor use
• Mounting: Desktop, Wall mount, Flush (Panel) mount supported
