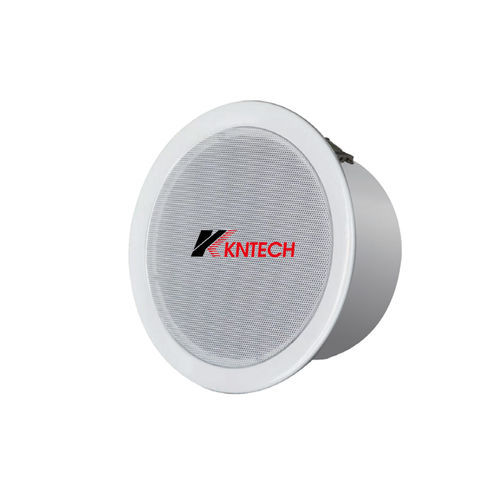

Altoparlante da soffitto KNL9-A-6W

antincendioterziario

Overview
Model: KNL9-A-6W
Size: 197*165*98mm
Material: Metal & Fire Rated Metal Rear Cover

Key Features
The loudspeaker incorporates a single 12 cm (5") full range cone-type transducer with a smooth frequency response of 80 Hz to 20 kHz measured on axis.
The loudspeaker produces a Sound Pressure Level (SPL) of 90 dB on axis at 1 meter with a power input of 1 watt and is capable of producing 6 watts (for 100V Line) and 3 watts (for 70V Line).
The loudspeaker is fitted with a factory-mounted transformer with easy selectable power tappings of 6W, 3W, 1.5W and 0.8W when using 100V Line and 3W, 1.5W, 0.8W and 0.4W when using 70V Line. Push-in-type connectors make cable connection quick and easy and allow bridge wiring when necessary.

Application

• Conference rooms
• Cafes
• Churches
• Background music
• Entertainment venues
• Home theaters

Caractéristiques / spécifications techniques

• Model: KNL9-A-6W
• Overall size: 197 x 165 x 98 mm
• Material: Metal with fire-rated metal rear cover
• Transducer: single 12 cm (5") full range cone-type
• Frequency response: 80 Hz – 20 kHz (measured on axis)
• SPL: 90 dB on axis at 1 m with 1 W input
• Nominal output power: up to 6 W (100V line) or 3 W (70V line)
• Transformer tap settings (100V): 6 W, 3 W, 1.5 W, 0.8 W
• Transformer tap settings (70V): 3 W, 1.5 W, 0.8 W, 0.4 W
• Factory-mounted transformer
• Connection: push-in type connectors; supports bridge wiring
