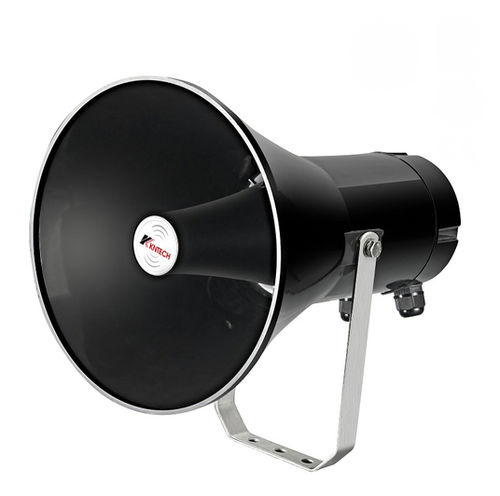

Clacson di allarme antiesplosione KNSIPLB-Ex15

a trombaper ambienti difficilida interno/da esterno

Product Overview
The KNSIPLB-Ex15 Network Speaker is a simple-to-install explosion-proof loudspeaker that provides clear, long-range speech for remote speaking in video surveillance applications. It enables an operator to remotely address people and deter unwanted activity and can play pre-recorded audio files when manually or automatically triggered by an alarm event. The unit integrates with Voice over IP (VoIP) telephone systems using SIP and supports Power over Ethernet (PoE) with a built-in amplifier, allowing one network cable for communication and power. Despite low power consumption, the speaker delivers a high sound pressure exceeding 92 dB and can be used as a standalone unit for flexible, scalable, and cost-effective system design.

Model and Physical
Model: KNSIPLB-Ex15
Size: 413*254*277MM
Material: Anti-static Polyamide

Pdf
Product datasheet is available as a PDF document related to the product.

Features

• Explosion-proof speaker design certified by ATEX standard.
• Material/Colour: Anti-static Polyamide / Black.
• Waterproof and dustproof rating: IP66.
• Service temperature range: -40 °C to +55 °C.
• 360° lossless broadcast capability.
• IP network horn speaker that is explosion-proof and waterproof.
• Suitable for public address and paging applications.
• Applications include petroleum, metallurgy, chemical industry, sea oil, nuclear power, shipbuilding, tunnels, and other projects requiring explosion-proof grade speaker.

ATEX Type and Marking
ATEX type and marking information is provided for explosion-proof certification and compliance.

Frequency Response / 1W/1m
Frequency response information and chart are provided for the product.

Products Size
Dimensional drawings and installation dimensions are provided for mounting and installation reference.

Installation dimension drawing
Installation dimension drawings and details are provided for proper mounting.

Product Packing
Unit size: 250 (∅)*352(L) mm
Unit G W: 3.7 kg
1 pcs in an inside box. Box size: 270 x 270 x 390 mm G.W: 3.7 kg
2 pcs in a CTN box. CTN box size: 570 x 290 x 420 mm G.W: 7.8 kg

Type Description
The appearance of the speaker mold is the same; the difference is whether a built-in transformer is included or not.

System and Application
System integration diagrams are provided to illustrate how the hazardous area horn speaker interfaces with related systems. Application images show typical outdoor and industrial installations demonstrating explosion-proof and outdoor use cases.

Caractéristiques / spécifications techniques

• Model: KNSIPLB-Ex15
• Dimensions: 413 x 254 x 277 mm
• Housing Material: Anti-static Polyamide, black
• Explosion-proof certification: ATEX (type and marking provided)
• Ingress Protection: IP66 (waterproof and dustproof)
• Operating Temperature Range: -40 °C to +55 °C
• Sound Pressure Level: exceeds 92 dB (high sound pressure)
• Audio Broadcast: supports live remote speaking and playback of pre-recorded audio files
• Network: IP network connectivity; supports SIP (VoIP) integration
• Power: Supports Power over Ethernet (PoE); built-in amplifier
• Installation: standalone unit with installation and mounting dimension drawings provided
• Packing: unit and carton sizes and gross weights as listed above
