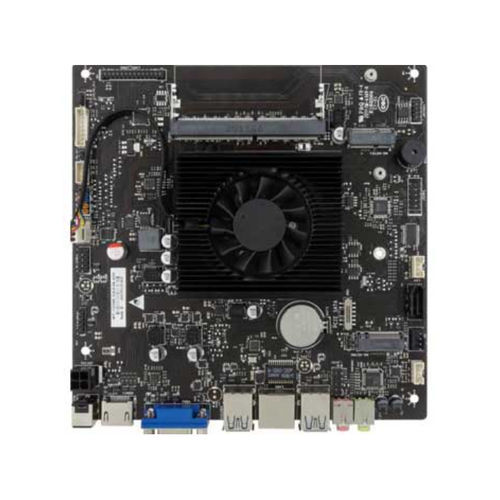

Thin-ITX è 170 mm (L) × 170 mm (L). La scheda madre ATOM N5095T ha installato il processore Intel Jasper Lake, tramite la scheda madre con processore Intel ATOM, chip ALC662 integrato per l'audio, chip RTL8111H integrato per la rete. Il modello di CPU è Celeron N5095/N5105, quad-core a 2,0 GHz (Burst/2,8)GHz (TDP:10W). La memoria è DDR4 2666MHz/2933MHz, con 1×DDR4 SO-DIMM(Max.16G)Slot di memoria. Scheda madre consumer dotata di 1 slot WIFI M.2 2230 e 1 slot SSD M.2 2242/2280 (supporto SATA/NVME SSD). I/O: 1×ingresso alimentazione DC (12V), 1×HDMI, 1×VGA, 4×USB3.0, 1×RJ45, 1×OUT, 1×MIC. Plug-in: 1×SATA3.0, 1×Alimentazione SATA, 1×Ventola CPU a 4 PIN, 1×Ventola SYS a 4 PIN, 1×LVDS (30 Pin 2.0mm), 1×Inverter, 1×Audio, 1×Speak, 1×USB2.0 doppio, 1×USB2.0 singolo, 1×Panel, 1×COM (opzione), 1×Alimentazione a 4 PIN, 1×JBIOS. BIOS: 128M flash ROM, AMI UEFI BIOS, PC Health.
---
