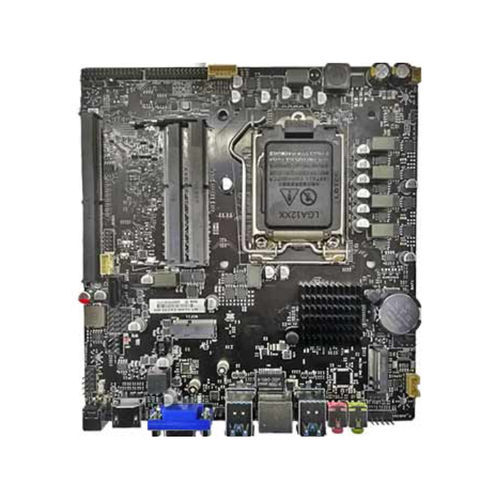

Il formato Mini-ITX sottile è 170 mm (L) × 170 mm (L). Power Graphics H510I-M ha installato il processore Intel H510, Realtek ALC662 Audio e Realtek RTL8111H per la rete. La CPU della scheda madre consumer è Intel Core i7/Core i5/Core i3/Pentium/Celeron, Intel LGA1200 10/11th CPU TDP: 65W. La memoria di Thin ITX è DDR4 2400MHz/2666MHz/2933MHz Max: 64G e dispone di 2×DDR4 SO-DIMM Memory Slot. Espansione: 1×MXM (A: DP, B: HDMI), slot WIFI: 1×M.2 2230 (supporto WIFI/BT/CNVI), slot SSD: 1×M.2 2280 (supporto SSD SATA/NVME). I/O: 1×ingresso alimentazione DC (19V), 1×HDMI (display indipendente), 1×VGA (display integrato), 1×RJ45, 4×USB3.0, 1×OUT, 1×MIC. Plug-in: 2×LVDS (30Pin 2.0mm), 1×LCD_VOL_SELDisplay Voltage Jump Cap (5V/12V), 1×JKEY 6PIN Panel function pins, 1×2PIN Backlight power supply, 1×BKL_VOL Backlight Jump Cap, 1×SATA3.0, 1×Alimentazione SATA, 1×4PIN CPU FAN, 1×4PIN GPU FAN, 1×Audio, 1×Speak, 1×Pin D-MIC (opzione), 1×FPANEL, 2×Pin doppio USB2.0, 1×Pin JBAT, 1×Pin JBIOS. BIOS: 128M flash ROM, AMI UEFI BIOS, PC Health, WOL.
---
