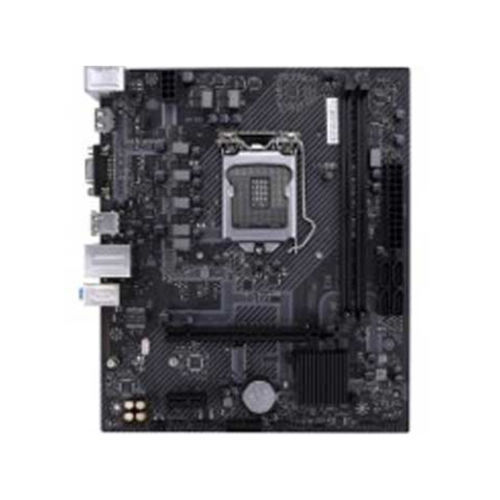

La scheda madre aziendale H510M Micro ATX ha installato la decima CPU Intel e la GPU PCIE/onboard (riservata). La scheda madre business offre 2 slot di memoria e M.2 NVMe/SATA SSD. 3 x M.2, 1 x PCI Express 5.0x16, 1 x PCI Express 3.0x4 e 6 x porta SATA Gen3 per lo storage. La scheda madre business supporta HDMI e DP per la visualizzazione. I/O: interfaccia audio a 6 fori e 8 canali, rete Intel 2,5Gbit WiFi-6 integrata, jack audio da 3,5 mm, 1 x 9 pin, 2 x 5-1 2 54 mm, I/O: 4 x USB 2.0, 2 x USB 3.2 Gen 2 (1 x Type-A +1 x Type-C), 2 x USB 3.2 Gen 1, pin integrati: 2 x USB2.0, 1 x USB 3.0 Tpye-A, 1 x USB 3.0 Tpye-C. Espansione: 1 x PCI Express 5.0x16, 1 x PCI Express 3.0x4, M2_1" M.2 supporta PCIE GEN4 x 4 SSD, M2_2" M.2 supporta PCIE GEN3 x 4/SATA SSD, M2_3" M.2 supporta PCIE GEN4 x 4 SSD. La scheda madre ATX mini business supporta F_Pannel. 1 ventola CPU, 3 ventole di sistema, 1 pompa dell'acqua. L'alimentazione è a 24PIN +8PIN + 4PIN.
---
