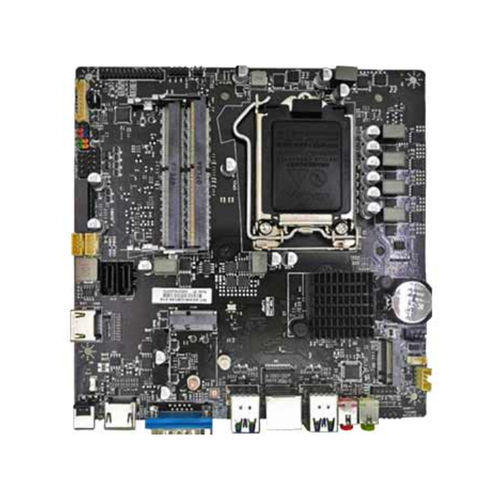

Il formato Mini-ITX sottile è 170mm×170mm×6L. Scheda madre Core H510I dotata di processore Intel H510. Audio Realtek ALC662 e rete Intel i219V. Modello di CPU: Intel Core i7/Core i5/Core i3/Pentium/Celeron. Piattaforma CPU: Intel LGA1200 10/11th CPU TDP: 65W. Memoria della scheda madre consumer: DDR4 2666MHz/2933MHz Max: 64G e 2×DDR4 SO-DIMM slot di memoria. Espansione: 1×M.2 2230 (supporto WIFI/BT/CNVI) e 1×M.2 2280 (supporto SSD SATA/NVME). I/O: 1×ingresso alimentazione DC (12-19V), 1×HDMI, 1×COM, 1×RJ45, 4×USB3.0, 1×OUT, 1×MIC. Plug-in: 1×LVDS 30 PIN, 1×LCD_VOL_SEL Tensione display (5V/12V), 1×8 Pin Inverter, 1×BKL_VOL Tensione retroilluminazione (12V/19V), 2×SATA3.0, 2×SATA Power, 2× USB2.0 doppio, 1×Audio, 1×Speak, 1×FPANEL, 1×4 PIN CPU Fan, 1×JBAT、1×JBIOS/TPM.
---
