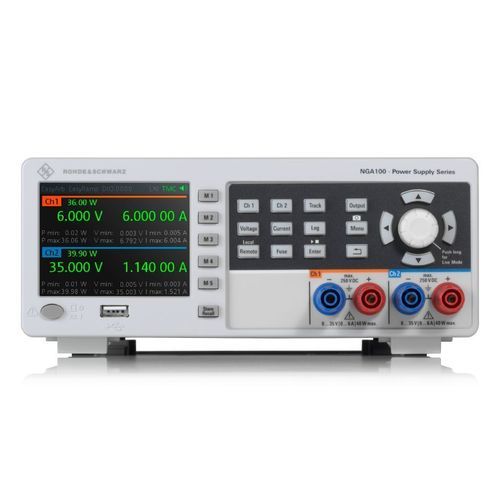

Alimentatore elettrico da tavolo R&S®NGA100

DCregolatoa corrente costante

Overview R&S®NGA100 DC power supplies are linear, compact and easy to use. All models offer excellent readback accuracy with a low-current range for demanding measurements. Data logging, arbitrary waveforms, built-in statistics and remote sensing features make the instruments suitable for bench applications such as R&D, IoT low-power design, manufacturing, education and general-purpose use. Equipped with USB and Ethernet remote interfaces, the instruments are suitable for automated tests. The channel fusion feature extends voltage and current range (up to 200 V in serial mode or up to 12 A in parallel mode). Advanced protection functions protect connected devices and the power supplies.

Key Facts

• Max. output power: 80 W
• Max. voltage per channel: 35 V or 100 V
• Max. current per channel: 2 A or 6 A
• Up to 200 V in serial or 12 A in parallel mode with channel fusion
• Intuitive, price-transparent online product configurator

Features & benefits

• Linear design — Linear output stages for minimum residual ripple and noise, supplying extremely stable output voltage and current for sensitive circuits.
• High readback accuracy — Outstanding programming and readback accuracy; low-current measurement range with resolution 1 µA for currents ≤ 200 mA; integrated statistics (min/max values for power, voltage, current).
• FlexPower — Delivers maximum power at various operating points; shows all possible voltage/current combinations in FlexPower curves.
• Channel Fusion — Two output channels (on NGA102/NGA142) can be fused in series or parallel to double voltage or current capability (serial internal, parallel requires external wiring).
• Easy-to-use configurator — Online configurator provides full price transparency and fast order processing through distribution partners.

Available models (summary)
Model | Order number | Number of output channels | Max. output power | Output voltage per channel | Output current per channel | Price from
R&S®NGA101 | 5601.8002.02 | 1 | 40 W | 0 V to 35 V | 0 A to 6 A | 1.170 EUR
R&S®NGA141 | 5601.8002.03 | 1 | 40 W | 0 V to 100 V | 0 A to 2 A | 1.170 EUR
R&S®NGA102 | 5601.8002.04 | 2 | 80 W | 0 V to 35 V | 0 A to 6 A | 1.830 EUR
R&S®NGA142 | 5601.8002.05 | 2 | 80 W | 0 V to 100 V | 0 A to 2 A | 1.830 EUR

Applications (examples)

• R&D
• Creating IoT low-power designs
• Manufacturing
• Education
• General bench use

Characteristics / Technical specifications

• Number of output channels: NGA101/NGA141 = 1; NGA102/NGA142 = 2
• Total output power: NGA101/NGA141 max. 40 W; NGA102/NGA142 max. 80 W
• Maximum output power per channel: 40 W
• Output voltage per channel: NGA101/NGA102: 0 V to 35 V; NGA141/NGA142: 0 V to 100 V
• Maximum output current per channel: NGA101/NGA102: 6 A; NGA141/NGA142: 2 A
• Voltage ripple and noise (20 Hz to 20 MHz): NGA101/NGA102 < 0.5 mV RMS / < 10 mV p-p (meas.); NGA141/NGA142 < 1.5 mV RMS / < 20 mV p-p (meas.)
• Current ripple and noise (20 Hz to 20 MHz): < 500 µA RMS (meas.)
• Load recovery time (10% to 90% load change to within 0.2% of rated voltage): NGA101/NGA102 < 100 µs; NGA141/NGA142 < 50 µs
• Programming resolution: voltage 1 mV; current 1 mA
• Readback resolution: voltage 1 mV; current 100 µA (for currents <= 200 mA: 1 µA)
• Readback accuracy voltage: < 0.02% + 5 mV (NGA101/NGA102); < 0.02% + 10 mV (NGA141/NGA142)
• Readback accuracy current: < 0.03% + 500 µA
• Measurement functions: voltage, current, power
• Protection functions: OVP, OCP, OPP, OTP
• FuseLink function and fuse delay time available on NGA102 and NGA142
• Sense function: yes
• Trigger input/output: available with option R&S®NGA-K103
• Arbitrary function: CH1 only (EasyArb)
• Data logging: Standard
• Display: 3.5" / QVGA
• Rear panel connections: 8-pin connector block (outputs, remote sensing)
• Remote control interfaces (standard): USB-TMC, USB-CDC (virtual COM), LAN
• Dimensions (W × H × D): 222 mm × 97 mm × 448 mm (8.74 in × 3.82 in × 17.64 in)
• Weight: NGA101 6.6 kg; NGA141 6.9 kg; NGA102 7.0 kg; NGA142 7.3 kg
• Rack installation: R&S®HZN96, space for two instruments — 19", 2 HU
