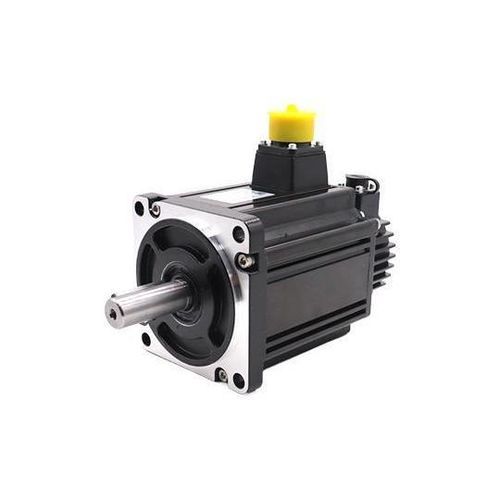

Servomotore AC 130B series

220 VIP655 poli

Features: 17-bit and 23-bit absolute value photoelectric encoder, with high range and high responsiveness;Speed: Good high-speed performance, the rated speed can generally reach 3000 rpm, the maximum speed can reach 6000 rpm;Adaptability: Strong overload resistance, can withstand a load three times the rated torque, particularly suitable for situations with instantaneous load fluctuations and requiring rapid start-up;Stability: Smooth operation at low speed, during low-speed operation there will be no step operation phenomenon similar to stepper motors. Suitable for situations with high-speed response requirements;Timeliness: The dynamic response time of the motor's acceleration and deceleration is short, generally within tens of milliseconds;Comfort: Heat and noise are significantly reduced.Product SpecificationsModelVoltage (VAC)Current (A)Torque (Nm)Weight (kg)Body Length (mm)ZM1308ST-C06415-2B12207.06.4Without brake141ZM1308ST-C08415-2B122098.4Without brake157ZM1308ST-C11515-2B12201211.5Without brake175ZM1308ST-C14615-2B12201514.6Without brake196Motor SpecificationsMotor ModelZM130BST-C06415-2B1ZM130BST-C08415-2B1ZM130BST-C11515-2B1ZM130BST-C14615-2B1Rated Voltage (V)220220220220Rated Power (W)1000130018002300Rated Current (A)7.091215Rated Torque (Nm)6.48.411.514.6Rated Speed (rpm)1500150015001500Moment of Inertia (10⁻³kg·m²)1.312.01 ±10%2.57 ±10%3.32 ±10%Back EMF Constant (V/Krpm)53.557 ±10%58.5 ±10%58.5 ±10%Line Resistance (Ω)0.720.61 ±10%0.34 ±10%0.25 ±10%Line Inductance (mH)6.374.72 ±10%3.03 ±10%2.35 ±10%Torque Constant (Nm/A)0.910.93 ±10%0.95 ±10%0.97 ±10%Electrical Time Constant (ms)8.857.73 ±10%8.9 ±10%9.4 ±10%Body Length (mm)141157175140Rotor Pole Pairs 5 p Motor Insulation Class Class F Protection Class IP65Outline DrawingEncoder: 17-bit and 23-bit absolute value photoelectric encoderRated voltage: 220VRated speed: up to 3000 rpm, max 6000 rpmOverload resistance: up to 3x rated torqueDynamic response time: tens of millisecondsNoise and heat: significantly reducedProtection class: IP65Insulation class: FAvailable models: ZM1308ST-C06415-2B1, ZM1308ST-C08415-2B1, ZM1308ST-C11515-2B1, ZM1308ST-C14615-2B1
